What Length Screw for Metal Roof Calculator: A Simple Homeowner Guide

Choosing metal roofing screws may seem straightforward until you see several lengths, head styles, thread types, and washer options on the shelf. A screw that is too short may not hold the panel securely. One that is too long can miss the framing, penetrate unwanted areas, or increase material costs without improving performance.

A what length screw for metal roof calculator helps you estimate the minimum screw length by adding the thickness of every layer the screw must pass through to the required depth of attachment. However, the calculation is only a starting point. Your panel manufacturer’s installation instructions, local wind requirements, roof structure, and fastener testing must guide the final choice.

This guide explains the calculation, common screw lengths, attachment materials, warning signs, installation mistakes, and when professional help is the safer decision.

Quick Answer

A what length screw for metal roof calculator adds the thickness of the metal panel, underlayment, insulation, spacers, and other layers to the required embedment in wood or penetration through metal framing. Many residential exposed-fastener roofs use screws around 1 to 1½ inches long, but the manufacturer’s specifications always control.

Metal Roof Screw Length Calculator

Use this basic formula:

Required screw length = total material thickness + required attachment depth

Your total material thickness may include:

• Metal roofing panel
• Underlayment
• Existing shingles, when approved
• Wood battens or furring strips
• Rigid insulation
• Clips, brackets, or trim pieces
• Air space between the panel and the roof deck

Then add the required amount of screw that must enter the supporting material.

Simple Calculator Worksheet

Layer or requirement	Example thickness
Metal roofing panel	0.03 inch
Underlayment	0.04 inch
Existing shingle layer	0.25 inch
Wood batten	0.75 inch
Required embedment into framing	1.00 inch
Calculated minimum length	2.07 inches
Likely available screw length	2½ inches

In this example, a 2-inch screw would be slightly too short. The next available approved length may be 2½ inches.

Do not automatically round down. A screw must still achieve the required embedment after accounting for panel ribs, washers, compressed insulation, uneven surfaces, and installation tolerances.

How to Calculate Metal Roof Screw Length

Step 1: Identify the Metal Roof System

Begin by determining whether you have:

• An exposed-fastener metal roof
• A standing seam roof with concealed clips
• Corrugated metal panels
• Ribbed agricultural-style panels
• Metal shingles
• Metal panels installed over shingles
• Metal panels installed over battens
• Metal roofing attached to wood decking
• Metal roofing attached to steel purlins

Different systems use different fasteners. A screw intended for exposed corrugated panels may not be suitable for a standing seam clip.

The Metal Construction Association’s fastener compatibility guidance emphasizes that fastener type must match the metal panel and supporting structure to create a strong, weather-resistant connection.

Step 2: Find the Fastener Location

The correct screw length also depends on where the screw will be installed.

Common locations include:

• Through the flat section of the panel
• Through the top of a raised rib
• Through a side lap
• Through ridge cap or hip trim
• Through flashing
• Through a concealed clip
• Through closure strips
• Into solid roof decking
• Into rafters or purlins

A screw passing through a raised rib requires more length than one installed through the flat portion of the same panel.

Some panel manufacturers require screws in the flat area beside the rib. Others specify fastening through the high rib. Never assume the placement based on another roof.

Step 3: Measure Every Layer

Measure the combined thickness of all materials between the screw head and the supporting structure.

For example:

• Panel thickness: approximately 0.02 to 0.04 inch
• Underlayment: approximately 0.03 to 0.08 inch
• Existing shingles: approximately ¼ to ½ inch
• Wood batten: commonly 1x lumber with an actual thickness near ¾ inch
• Rigid insulation: may range from ½ inch to several inches
• Air gap: varies by assembly

Compressed materials can make the calculation less predictable. Insulation, old shingles, uneven decking, and sealants may not maintain a uniform thickness across the entire roof.

Step 4: Add the Required Attachment Depth

The screw must reach and grip the structural attachment material.

For wood construction, the required embedment depends on:

• Wood species and condition
• Screw diameter and thread design
• Roof panel system
• Wind-uplift requirements
• Fastener spacing
• Whether the screw enters decking, battens, rafters, or purlins

Many residential systems use screws designed to achieve substantial engagement in sound wood, often around 1 inch or as specifically required by the manufacturer. This should not be treated as a universal rule.

For steel purlins, the screw must have the correct drill point and enough usable threads to engage the metal properly. A wood screw is not a substitute for a self-drilling structural metal fastener.

Step 5: Select the Next Approved Standard Length

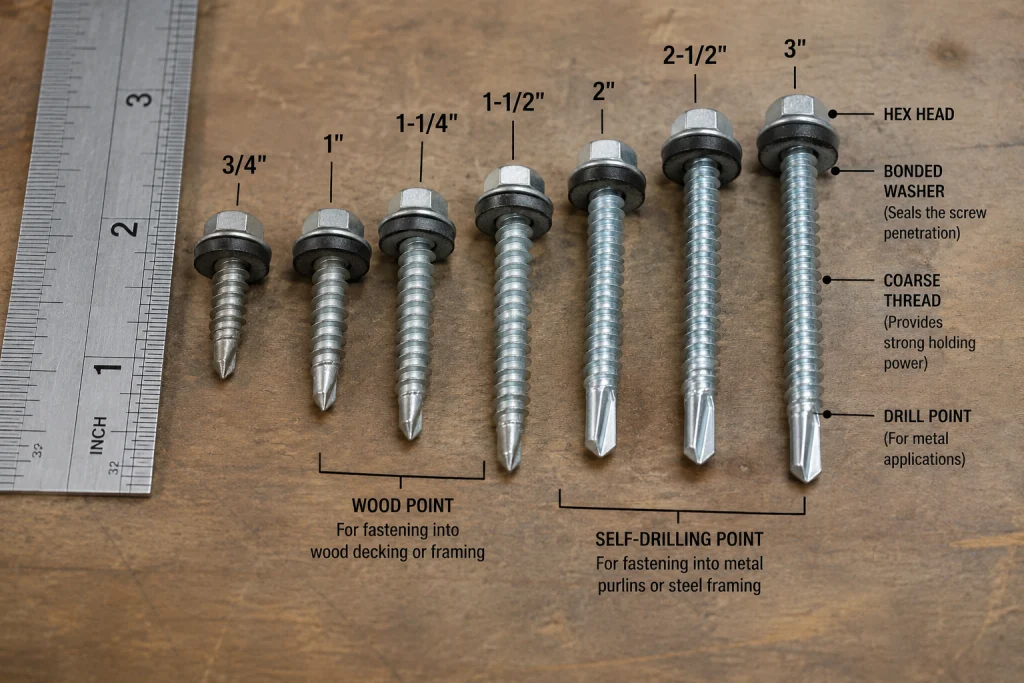

Roofing screws are sold in standard lengths, such as:

• ¾ inch
• 1 inch
• 1¼ inches
• 1½ inches
• 2 inches
• 2½ inches
• 3 inches

After calculating the minimum, choose the next suitable length that is approved for the roof system.

Longer is not always better. An unnecessarily long fastener may:

• Miss narrow framing members
• Interfere with wiring or utilities below the deck
• Create visible points in open-ceiling structures
• Be harder to install straight
• Increase the chance of bending
• Cost more without increasing tested uplift resistance

Common Metal Roof Screw Lengths

The following table provides general examples rather than universal specifications.

Roofing application	Common starting range	Important consideration
Thin metal trim attached to metal panel	¾–1 inch	May be a stitch screw that does not enter the roof deck
Exposed panel over solid wood deck	1–1½ inches	Confirm minimum deck thickness and required penetration
Panel over wood battens	1½–2½ inches	Screw must pass through the panel and fully engage the batten
Panel over shingles and battens	2–3 inches	Include shingle thickness, batten thickness, and required embedment
Standing seam clip into wood	Often 1–1½ inches	Use the clip manufacturer’s approved pancake-head fastener
Panel into light-gauge steel purlin	Varies by assembly	Correct drill point and thread engagement are critical
Ridge cap or hip trim	Often longer than field screws	Closures, rib height, and trim layers add thickness

For example, an official ABC 5V Crimp installation manual specifies 1½-inch wood fasteners for several details over a minimum ⅝-inch plywood deck. That does not mean every 5V, corrugated, or ribbed panel from another manufacturer uses the same screw.

Wood Decking vs. Wood Purlins vs. Steel Purlins

Solid Wood Decking

Solid decking usually consists of plywood, oriented strand board, or wood boards covering the full roof surface.

Before choosing a screw, confirm:

• The deck is thick enough for the approved system
• The wood is not rotten, soft, or delaminated
• The screw is approved for direct-to-deck installation
• The installation pattern meets wind requirements
• The fastener will not rely only on weak underlayment or shingles

A long screw cannot compensate for deteriorated decking. Damaged areas should be repaired before the panels are installed.

Wood Purlins or Battens

Purlins and battens are horizontal wood members installed across the rafters or over the roof deck. Metal panels may be fastened directly to them when the roof system permits it.

The screw must pass through any rib, panel, insulation, or existing roof layer before entering the wood batten.

Measure the entire assembly carefully. A 1½-inch screw may work over a thin panel and exposed batten but may be too short when installed over shingles or insulation.

Steel Purlins

Metal-to-metal connections require screws designed for the thickness and grade of the steel.

Important details include:

• Drill-point capacity
• Thread diameter
• Threads per inch
• Purlin thickness
• Corrosion-resistant coating
• Washer design
• Tested pull-out strength
• Number of threads engaging the steel

Do not use a wood-point roofing screw in steel framing. It may fail to drill correctly or provide reliable holding strength.

Does Metal Roof Screw Diameter Matter?

Yes. Length is only one part of fastener selection.

Roofing screws are often identified by both diameter and length. For example:

• #9 x 1½ inches
• #10 x 1 inch
• #12 x 2 inches
• #14 x 1½ inches

The first number refers to the approximate screw diameter. A higher number generally means a thicker screw.

Screw diameter affects:

• Pull-out resistance
• Shear strength
• Drill-point capacity
• Hole size
• Washer size
• Compatibility with panel warranties
• Performance under high winds

Replacing a specified #12 screw with a thinner #9 screw simply because the length matches can reduce holding strength.

Choosing the Correct Washer and Coating

Most exposed metal roof screws use a bonded washer made from metal and a flexible sealing material, commonly ethylene propylene diene monomer rubber.

The washer helps seal the screw hole against water. It must be:

• Compatible with the roofing metal
• Approved for outdoor exposure
• Resistant to ultraviolet damage
• Large enough for the fastener system
• Installed with the correct compression

The screw coating also matters. Using an incompatible metal can lead to galvanic corrosion, staining, premature fastener failure, or damage around the hole.

For coastal locations, industrial areas, and roofs exposed to salt or chemicals, ask the panel manufacturer whether standard coated carbon-steel screws are acceptable. Stainless steel or specially coated fasteners may be required.

How Tight Should Metal Roof Screws Be?

A correctly installed washer should be compressed enough to create a seal without being crushed or pushed beyond the metal cap.

An underdriven screw may have:

• A loose washer
• A visible gap under the washer
• A screw head that can move
• Poor panel contact
• A possible leak path

An overdriven screw may have:

• A severely bulged washer
• Split or damaged rubber
• A dented metal panel
• Stripped wood or metal threads
• A tilted screw
• Reduced long-term sealing performance

The screw should sit straight, not at an angle.

Expert Tip:

Use a screw gun with an adjustable depth setting rather than a high-powered impact driver at full force. Test several fasteners on scrap material first and adjust the tool until the washer is evenly compressed without distortion.

Why Manufacturer Instructions Matter More Than a Generic Calculator

A calculator estimates physical length. It cannot determine whether a screw has the correct:

• Diameter
• Thread pattern
• Drill point
• Head style
• Washer
• Corrosion coating
• Pull-out resistance
• Wind-uplift rating
• Installation spacing
• Compatibility with the panel finish

Manufacturers may specify different fasteners for the field of the panel, side laps, ridge cap, eave trim, valleys, clips, and flashing.

Homeowners should locate the exact installation manual for the panel profile and gauge. ABC, for example, publishes product- and gauge-specific installation manuals rather than recommending one universal fastener for all metal roofs.

Special Situations That Change Screw Length

Metal Roofing Over Shingles

Installing metal over existing shingles may be permitted in some situations, but the screw must pass through the full assembly and attach to an approved structural material.

Additional concerns include:

• Local building-code limits on roof layers
• Uneven shingle surfaces
• Moisture trapped between layers
• Abrasion against the underside of the metal
• Need for battens or separation material
• Reduced ability to inspect the original decking
• Longer fasteners missing rafters

An inspection should confirm that the existing roof deck is sound before it is covered.

Metal Roofing Over Rigid Insulation

Rigid insulation adds thickness but may not provide structural holding strength. Long screws may need to pass through the insulation and attach to wood or steel below.

Compression is a major concern. Overtightening may crush the insulation, distort the panels, loosen the attachment, or create uneven roof surfaces.

Engineered assemblies may require special clips, bearing plates, thermal spacers, or tested long fasteners.

Replacing Loose Screws

A loose screw should not automatically be replaced with a longer version.

The original hole may be enlarged because of:

• Stripped wood
• Thermal movement
• Incorrect installation
• Rotten decking
• An oversized hole
• Fastener corrosion
• Panel movement
• Wind damage

A slightly larger-diameter approved repair fastener may be more appropriate than a longer screw. If the deck is damaged, the roof may need structural repair rather than a larger fastener.

High-Wind Areas

Fastener length, diameter, spacing, and edge patterns become especially important in hurricane- and high-wind regions.

Roof edges, corners, eaves, and ridges usually experience greater wind pressures than interior roof areas. A contractor may need to use tighter fastener spacing or a system tested for the property’s design wind pressures.

Do not modify the fastener pattern without approved engineering or manufacturer guidance.

Common Mistakes Homeowners Should Avoid

• Choosing by length alone: The correct screw must also match the panel, substrate, diameter, washer, drill point, and coating requirements.
• Assuming every roof uses 1½-inch screws: This is a common length, but it is not correct for every roof assembly.
• Ignoring rib height: A fastener installed through a raised rib travels farther before reaching the support.
• Fastening only into shingles or insulation: These materials do not provide reliable structural holding strength.
• Using deck screws: Standard interior or exterior deck screws do not have the correct roofing washer, corrosion protection, or tested performance.
• Using metal screws in wood: Metal-to-metal threads may not provide the same holding strength as a proper wood-fastening thread.
• Overtightening the washer: Crushing the washer can shorten its service life and deform the panel.
• Installing screws at an angle: A tilted washer may not seal evenly.
• Missing purlins or rafters: A long screw provides little value when it does not enter the intended framing member.
• Mixing incompatible metals: Incorrect fastener materials may encourage corrosion.
• Reusing old roofing screws: Used washers may be damaged, hardened, compressed, or unable to reseal properly.
• Ignoring the panel warranty: Unapproved fasteners or installation methods may affect warranty coverage.

DIY vs. Professional Fastener Selection

Consideration	DIY homeowner	Roofing professional
Measuring simple roof layers	Often manageable	Manageable
Identifying panel profile	May require research	Usually familiar
Confirming structural attachment	Can be difficult	Can inspect framing and deck
High-wind design	Not recommended without guidance	Can follow tested assemblies
Standing seam clip selection	Often system-specific	Better suited to trained installer
Working on steep or high roofs	High risk	Uses proper access and fall protection
Diagnosing loose fasteners	Damage may be hidden	Can identify movement or deck failure
Warranty compliance	Easy to overlook	Can document approved materials

When to Call a Roofing Professional

Call a qualified metal roofing contractor when:

• The roof is steep, high, wet, or difficult to access
• You cannot identify the panel manufacturer
• The roof is in a hurricane-prone or high-wind region
• Panels are installed over insulation
• The roof uses standing seam clips
• Existing screws are backing out across large areas
• The roof deck feels soft or damaged
• Water stains appear near fastener lines
• Rust is spreading around screw holes
• Several washers are cracked or missing
• Panels are lifting, vibrating, or moving
• You are unsure whether screws should enter decking, battens, rafters, or purlins
• Electrical wiring or finished ceilings are close below the roof deck

Metal roofs can be extremely slippery, especially when wet, dusty, frosted, or covered with loose debris. The OSHA residential fall-protection resources explain the importance of proper systems and procedures for controlling roofing fall hazards.

Do not climb onto a metal roof simply to measure a screw. Fastener information can often be obtained from construction records, attic access, spare materials, the panel supplier, or a contractor’s inspection.

FAQs

What is the most common screw length for metal roofing?

Many exposed-fastener residential metal roofs use screws between 1 and 1½ inches long. However, roofs installed over battens, shingles, insulation, or raised ribs may require screws that are 2 inches or longer.

Is a 1-inch screw long enough for a metal roof?

A 1-inch screw may be suitable for certain trim, clips, laps, or direct-to-deck applications. It may be too short if the screw must pass through a raised rib, batten, shingle layer, or insulation before reaching structural material.

How far should a metal roof screw go into wood?

The required embedment depends on the panel system, screw design, wood condition, wind load, and manufacturer instructions. Do not count shingles, insulation, or underlayment as structural embedment.

Can metal roof screws be too long?

Yes. An excessively long screw may miss framing, protrude through an exposed ceiling, interfere with wiring, bend during installation, or add no meaningful holding strength.

Should metal roof screws go into plywood or rafters?

Some tested roof systems allow fastening into approved plywood or oriented strand board decking. Others require attachment to battens, purlins, or rafters. Follow the exact panel manufacturer’s instructions and applicable engineering requirements.

What screws should I use for a metal roof over shingles?

Use only screws approved for the metal panel and roof assembly. The screw must pass through the panel, shingles, underlayment, and any battens before achieving the required attachment in sound structural material.

Can I replace a loose roofing screw with a longer screw?

Not always. A loose screw may indicate an enlarged hole, damaged washer, rotted wood, thermal movement, or incorrect fastener spacing. An approved larger-diameter repair screw or deck repair may be needed instead.

Conclusion

A reliable what length screw for metal roof calculator starts with a simple equation: add the thickness of every roof layer to the required attachment depth in sound wood or metal framing. Then select the next available approved screw length.

The calculation does not replace the manufacturer’s installation manual. Screw diameter, thread design, washer quality, coating, spacing, substrate, and wind-uplift requirements are just as important as length.

Before purchasing fasteners, identify the exact panel system, measure the full roof assembly, confirm where the screws must attach, and compare your calculation with the manufacturer’s specifications. For steep roofs, standing seam systems, damaged decking, insulation assemblies, or high-wind locations, have a qualified metal roofing professional inspect the roof and specify the fasteners.
