What Is Corrugated Metal Roofing? A Homeowner’s Complete Guide
If you are comparing roofing materials, you may have seen metal panels with a repeating wavy or ribbed pattern. These panels are common on barns and sheds, but modern versions are also used on homes, cabins, garages, porches, and commercial buildings.
So, what is corrugated metal roofing, and is it a practical choice for your home?
Corrugated metal roofing is made from formed metal sheets designed with raised ridges and recessed grooves. The corrugated shape makes thin metal panels stronger, helps direct rainwater off the roof, and gives the roof its recognizable appearance.
This guide explains how corrugated roofing works, what it is made from, how it compares with standing seam roofing, what it costs, and what homeowners should check before installation.
Quick Answer
Corrugated metal roofing is a roof covering made from steel, aluminum, or another metal formed into repeating waves or ribs. The pattern adds strength and helps move water down the roof. Panels usually overlap and are secured with exposed screws, making the system affordable, durable, and suitable for homes, garages, barns, and sheds.
How Corrugated Metal Roofing Works
A flat sheet of thin metal can bend fairly easily. Forming that sheet into waves, ribs, or repeating ridges increases its stiffness without adding much weight.
This process is called corrugation.
The raised and lowered sections serve several purposes:
- They strengthen the panel.
- They help the panel span across roof framing or decking.
- They guide rainwater toward the gutters.
- They allow neighboring panels to overlap.
- They create the traditional corrugated-roof appearance.
Corrugated panels are normally installed in long vertical runs from the roof ridge toward the eaves. One panel overlaps the next to reduce water entry.
Most residential corrugated roofing uses exposed fasteners. This means the screws and sealing washers remain visible after installation.
What Is Corrugated Metal Roofing Made From?
Corrugated roofing describes the panel’s shape, not one specific metal. Manufacturers can form several metals into corrugated panels.
Galvanized Steel
Galvanized steel is coated with zinc to slow corrosion. It is strong, widely available, and often one of the least expensive corrugated roofing choices.
The coating must remain intact to protect the steel underneath. Cut edges, scratches, and poorly installed fasteners can become starting points for rust.
Galvalume-Coated Steel
Galvalume steel has a protective coating made primarily from aluminum and zinc. It generally offers strong resistance to corrosion and heat exposure.
It is commonly sold with either a natural metallic finish or a factory-applied painted coating.
Painted Steel
Painted steel panels have a protective coating over the metal surface. Homeowners can choose from many colors, including gray, black, green, red, brown, and white.
A quality factory finish can improve appearance and provide additional protection from weathering. However, coating quality varies, so homeowners should ask about the paint system and finish warranty.
Aluminum
Aluminum does not rust like ordinary steel. This makes it useful in coastal areas or other locations where salt exposure is a concern.
It is also lightweight, but it can cost more and may dent more easily than heavier steel panels.
Other Metals
Copper and zinc can also be formed into corrugated panels. These materials are less common because they are substantially more expensive.
They are usually selected for distinctive architectural projects rather than budget-focused residential roofs.
Corrugated Profiles: Wavy vs. Ribbed Panels
Not every product sold as corrugated roofing has a rounded wave pattern.
Traditional corrugated panels have smooth, repeating curves. Modern products may use sharper, box-shaped ribs or trapezoidal profiles.
Common profiles include:
- Traditional wavy corrugation: Rounded waves with a classic agricultural appearance.
- R-panel: Wider flat sections separated by tall ribs.
- PBR panel: Similar to an R-panel but designed with an added overlap leg.
- 5V-crimp: A lower-profile metal panel with narrow V-shaped ribs.
- Ag panel: A general term often used for economical exposed-fastener roofing.
Panel names and dimensions vary by manufacturer. Homeowners should not select a system based only on appearance. The panel must also be approved for the roof slope, wind exposure, deck type, and local building requirements.
How Corrugated Metal Roofing Is Installed
Installation details vary, but a typical process includes the following steps:
- Inspect the roof structure.
The contractor checks the roof deck, framing, slope, and existing damage. - Install an appropriate underlayment.
Underlayment provides a secondary layer of protection beneath the metal. - Measure and lay out the panel positions.
Accurate alignment prevents the panels from gradually shifting out of square. - Install panels from the eave upward.
Each panel is positioned so water can drain naturally down the roof. - Overlap adjacent panels.
The required side lap depends on the panel design and manufacturer’s instructions. - Install screws in the specified locations.
Fastener placement may be on the panel’s flat section or through a rib, depending on the tested system. - Add flashing and trim.
Ridge caps, eave trim, valley flashing, wall flashing, and penetration flashing help seal vulnerable areas. - Inspect fasteners and sealants.
Screws must be straight and correctly tightened without crushing the sealing washers.
The Metal Construction Association’s metal roofing resources emphasize following system-specific installation practices rather than treating every metal panel as interchangeable. (Metal Construction Association)

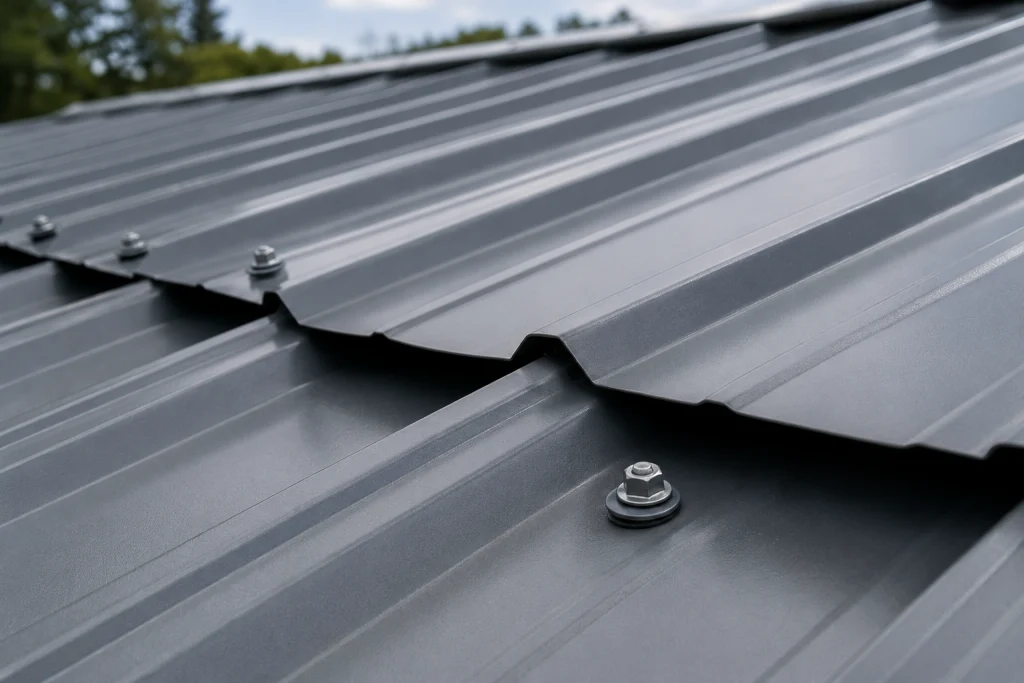

Exposed Fasteners: The Most Important Detail to Understand
Most corrugated residential roofs use screws with rubber or synthetic sealing washers. These washers compress against the panel and help prevent water from entering around the screw holes.
This design keeps installation relatively simple and affordable. However, exposed fasteners are also one of the system’s main maintenance concerns.
Over time, fasteners may:
- Loosen as panels expand and contract
- Back out of the roof deck
- Become crooked
- Corrode
- Develop cracked or hardened washers
- Be damaged by overtightening
- Leak after years of weather exposure
A loose screw does not always mean the entire roof needs replacement. A contractor may be able to replace damaged fasteners and washers if the panels and roof deck remain sound.
Do not simply tighten every screw as hard as possible. Overtightening can split the washer, deform the panel, and create a leak instead of stopping one.
Corrugated Metal Roofing vs. Standing Seam Roofing
Corrugated and standing seam roofs are both metal systems, but their designs are different.
| Feature | Corrugated Metal Roofing | Standing Seam Metal Roofing |
|---|---|---|
| Fasteners | Usually exposed | Usually concealed |
| Panel appearance | Wavy or strongly ribbed | Broad flat panels with raised seams |
| Typical cost | Lower | Higher |
| Installation complexity | Moderate | Higher |
| Maintenance | Fasteners require periodic checks | Fewer exposed fastening points |
| Thermal movement | Managed around exposed screws and panel laps | Clips may allow panels to move |
| Common uses | Homes, barns, sheds, garages, cabins | Homes and commercial buildings |
| Overall style | Traditional, rustic, industrial | Clean, modern, architectural |
Corrugated roofing may be a good fit when affordability and durability are the main priorities. Standing seam may be preferable when the homeowner wants concealed fasteners, cleaner lines, or a premium long-term system.
Benefits of Corrugated Metal Roofing
It Is Strong Without Being Excessively Heavy
The corrugated profile improves panel stiffness while keeping the roof covering relatively lightweight. This can reduce the structural load compared with some heavier roofing materials.
The roof structure must still be evaluated, especially if the panels will be installed over an existing roof.
It Can Be More Affordable Than Premium Metal Systems
Corrugated panels are usually less expensive than architectural standing seam panels. The simpler panel design and exposed fastening method can also reduce installation costs.
Actual pricing depends on the metal type, coating, thickness, roof complexity, location, and labor market.
It Sheds Rain and Snow Efficiently
The vertical ribs guide water down the roof. Metal also has a relatively smooth surface, which can help snow slide from steeper roofs.
That benefit can create a hazard near doors, sidewalks, vehicles, and landscaping. Snow guards may be needed in snowy regions.
It Is Available in Many Colors
Factory-painted panels allow homeowners to coordinate the roof with siding, brick, trim, and gutters.
Lighter-colored or specially coated roofs may reflect more solar energy. The U.S. Department of Energy explains that cool roof performance depends on solar reflectance, thermal emittance, climate, insulation, and roof design. Cool roofs generally provide their greatest cooling benefit in hotter climates. (The Department of Energy’s Energy.gov)
It Can Work on Several Building Types
Corrugated metal roofing can be used on:
- Single-family homes
- Cabins
- Garages
- Workshops
- Barns
- Storage buildings
- Porches
- Carports
- Agricultural structures
However, the panel must be rated for the building and roof slope. A product intended for an open agricultural structure may not automatically be appropriate for a conditioned home.
Limitations of Corrugated Metal Roofing
Exposed Screws Need Attention
The visible fasteners are vulnerable to weather and repeated panel movement. They should be checked periodically for loosening, damaged washers, and corrosion.
Poor Installation Can Cause Early Leaks
Misaligned panels, insufficient overlap, misplaced screws, missing closure strips, and careless flashing can cause water entry.
Metal roofing is durable, but it is not forgiving of poor detailing.
It May Be Noisy Without a Proper Roof Assembly
Rain can sound loud on metal installed directly over open framing. On a house with solid roof decking, underlayment, insulation, attic space, and finished ceilings, the sound is usually much less noticeable.
Ask the contractor to explain the entire roof assembly rather than judging noise based on an exposed barn roof.
It Can Dent
Large hail, falling branches, and careless foot traffic may dent thinner panels. Dents may be cosmetic, but severe impacts can damage coatings, seams, or fasteners.
Panel thickness, metal type, rib design, and supporting deck all influence dent resistance.
The Agricultural Appearance Does Not Suit Every Home
Corrugated roofing can look attractive on farmhouse, industrial, rustic, and contemporary homes. It may be harder to match with highly traditional architecture or neighborhood design rules.
Check homeowners association requirements before ordering materials.
How Long Does Corrugated Metal Roofing Last?
A properly selected and installed corrugated roof can provide decades of service. Its actual lifespan depends on more than the word metal.
Important factors include:
- Metal type
- Panel thickness
- Galvanized or Galvalume coating weight
- Paint-system quality
- Local climate
- Salt or chemical exposure
- Roof slope and drainage
- Fastener quality
- Installation workmanship
- Maintenance
- Tree debris and physical damage
A roof with premium panels but poorly installed screws may leak earlier than an economical panel installed correctly.
Likewise, a coastal home may need different materials and fasteners than a dry inland home.
What Does Corrugated Metal Roofing Cost?
Corrugated roofing is usually positioned as one of the more budget-friendly metal roof systems. However, homeowners should compare complete installed systems, not panel prices alone.
The total cost may include:
- Removal of the old roof
- Disposal fees
- Roof-deck repairs
- Underlayment
- Metal panels
- Fasteners and closure strips
- Ridge, valley, eave, and rake trim
- Pipe and chimney flashing
- Ventilation work
- Labor
- Permits
- Delivery
- Snow-retention accessories
- Gutter modifications
A simple gable roof will generally cost less than a roof with several valleys, dormers, skylights, chimneys, and wall intersections.
A low panel price does not guarantee a low completed-roof price. Flashing, trim, labor, and deck repairs can represent a substantial part of the project.
Choosing the Right Panel Thickness
Metal roofing thickness may be described by gauge. With steel, a lower gauge number generally indicates thicker metal, although exact thickness can vary by product standard and coating.
Common residential and light-commercial panels may be available in several gauges.
Thicker panels may offer:
- Greater resistance to deformation
- Better performance across wider support spacing
- Improved resistance to foot traffic
- A more substantial feel
- Higher material cost
However, thickness alone does not determine quality. A complete comparison should include the coating, paint finish, panel geometry, engineering approvals, fasteners, warranty, and installation method.
Ask each contractor to identify the exact manufacturer, profile, gauge, coating, and finish in writing.
Can Corrugated Metal Roofing Be Installed Over Shingles?
In some situations, metal panels can be installed over an existing asphalt-shingle roof. Whether this is appropriate depends on:
- Local building codes
- The number of existing roof layers
- Roof-deck condition
- Shingle condition
- Roof flatness
- Ventilation requirements
- Manufacturer instructions
- Added weight
- Flashing details
- Warranty conditions
Installing metal over shingles can reduce tear-off waste and shorten the project. It can also hide rotten decking, trapped moisture, uneven surfaces, or previous installation problems.
A contractor should inspect the roof from above and, where accessible, from the attic before recommending an overlay.
The Metal Construction Association provides technical material on retrofitting existing roofing with metal systems, including the importance of evaluating the existing structure, drainage, fastening, and other design conditions. (Metal Construction Association)
Is Corrugated Metal Roofing Suitable for Low-Slope Roofs?
Some corrugated panels can be installed on relatively low slopes, but not every panel is approved for the same minimum pitch.
Low-slope roofs drain more slowly. Water may remain around panel overlaps, fasteners, valleys, or penetrations longer than it would on a steep roof.
For that reason, low-slope applications may require:
- A specific panel profile
- Wider or sealed panel laps
- Manufacturer-approved sealant
- Continuous underlayment
- Special flashing
- Longer panels with fewer end laps
- A higher-performance roof system
Never assume a corrugated panel is suitable for a nearly flat roof. Ask for the manufacturer’s written minimum-slope requirement.
Does Corrugated Metal Roofing Rust?
Steel panels can rust when protective coatings are damaged or when the material is unsuitable for the environment.
Common causes include:
- Exposed cut edges
- Deep scratches
- Metal shavings left on the roof
- Incompatible fasteners
- Standing water
- Contact with corrosive materials
- Salt-air exposure
- Damaged paint
- Debris that traps moisture
- Runoff from incompatible metals
Small surface scratches may be repairable with a manufacturer-approved coating. Widespread rust, perforation, or corrosion around fasteners requires professional evaluation.
Avoid using random spray paint or roof cement without checking compatibility. An unsuitable repair product may stain the roof, trap moisture, or affect warranty coverage.
Expert Tip
Expert Tip: Ask contractors to quote a complete roofing system by manufacturer and product name. The proposal should identify the panel gauge, metal coating, paint finish, underlayment, fasteners, flashing, ventilation work, warranty, and installation method. This makes competing bids much easier to compare accurately.
Maintenance Checklist for Corrugated Metal Roofing
A professional roof inspection can identify problems that are difficult to see from the ground. Between inspections, homeowners can monitor the roof and surrounding areas for visible warning signs.
| Item to Check | What to Look For | Recommended Response |
|---|---|---|
| Fasteners | Raised, crooked, rusty, or missing screws | Schedule repair before water enters |
| Washers | Cracked, compressed, or missing seals | Replace with compatible fasteners |
| Panel surfaces | Rust, scratches, dents, or peeling coating | Evaluate damage and protect exposed metal |
| Panel laps | Gaps, movement, or failed sealant | Have laps inspected and resealed correctly |
| Flashing | Loose edges or gaps near walls and penetrations | Repair promptly |
| Gutters | Leaves, sediment, or standing water | Clean from a safe working position |
| Attic | Damp insulation, stains, mold, or daylight | Arrange a roof and ventilation inspection |
| Trees | Branches rubbing or hanging above the roof | Have branches professionally trimmed |
Homeowners should inspect from the ground with binoculars when possible. Metal roofs can be slippery even when they appear dry.
Warning Signs That the Roof Needs Attention
Contact a roofer when you notice:
- Water stains on ceilings or walls
- Damp or musty attic insulation
- Rust around screw heads
- Screws backing out
- Missing panels or trim
- Loose ridge caps
- Open panel overlaps
- Peeling paint or widespread corrosion
- Dents that have split the coating
- Leaks around vents, chimneys, or skylights
- Unusual movement or rattling during wind
- Sagging roof decking
A small leak should be investigated early. Water may travel along the panel, underlayment, or framing before appearing inside the house.
DIY vs. Professional Installation
Corrugated panels may appear simple because they are large sheets attached with screws. In practice, roof installation requires accurate layout, safe material handling, proper flashing, and knowledge of how metal expands and contracts.
| Task | Reasonable for Many Homeowners? | Main Concern |
|---|---|---|
| Visual inspection from the ground | Yes | Limited view of hidden problems |
| Cleaning nearby ground-level drainage | Sometimes | Ladder and fall risks |
| Replacing roofing screws | Usually no | Incorrect fastener type or compression |
| Installing flashing | No | High leak risk if detailed incorrectly |
| Cutting and installing panels | No | Sharp edges, alignment, falls, wind |
| Full roof replacement | No | Safety, code, weatherproofing, warranty |
Metal panel edges can be extremely sharp. Long panels can also catch the wind and pull a person off balance.
According to OSHA’s residential fall-protection guidance, roofing work exposes workers to serious fall hazards, and appropriate fall-protection systems are required in covered construction situations. (OSHA)
Do not climb onto a wet, frosted, dusty, or steep metal roof. Hire a properly equipped roofing contractor for repairs that require roof access.
When to Call a Roofing Professional
Call a qualified roofing professional when:
- You are considering a complete corrugated roof installation.
- Water is entering the attic or living area.
- Several screws are loose, rusty, or leaking.
- Panels move or make loud noises during wind.
- Rust covers a large section of the roof.
- Flashing is loose around a chimney, wall, skylight, or vent.
- The roof has been hit by large hail or falling branches.
- You want to install metal roofing over existing shingles.
- You are unsure whether the roof slope is sufficient.
- The deck may be rotten or structurally damaged.
- The home is in a hurricane-prone, coastal, wildfire, or heavy-snow region.
Homes in high-wind areas require more than simply adding extra screws. Panel approvals, edge zones, fastener spacing, substrate strength, trim attachment, and flashing all matter. FEMA’s guidance for reducing wind and water infiltration includes specific considerations for improving metal-roof performance in high-wind conditions. (FEMA)
Questions to Ask a Corrugated Metal Roofing Contractor
Before signing a contract, ask:
- What exact panel manufacturer and profile will you install?
- What metal, gauge, coating, and paint system are included?
- Is this panel approved for my roof slope?
- Will the existing roof be removed?
- How will you inspect and repair the roof deck?
- What underlayment will be used?
- What type of screws and sealing washers will be installed?
- Where will the fasteners be placed?
- How will valleys, walls, vents, chimneys, and skylights be flashed?
- How will attic ventilation be maintained?
- Does the system meet local wind and building-code requirements?
- Who provides the material and workmanship warranties?
- What maintenance does the manufacturer require?
- Are permit fees, cleanup, and disposal included?
- Can you provide proof of licensing and insurance where required?
Get at least two or three detailed written proposals. Avoid comparing contractors only by total price.
Common Mistakes Homeowners Should Avoid
- Choosing the cheapest panel without reviewing specifications. Thin metal, basic coatings, and short warranties may not provide the expected value.
- Assuming all corrugated panels are roofing panels. Some panels are intended mainly for walls or agricultural structures.
- Ignoring the minimum roof slope. Using a panel below its approved slope can lead to leaks at overlaps and fasteners.
- Using incorrect screws. Fasteners must be compatible with the metal, substrate, environment, and panel system.
- Overtightening fasteners. Crushing the washer can damage its seal.
- Undertightening fasteners. A loose washer cannot seal the screw hole properly.
- Driving screws at an angle. Crooked screws place uneven pressure on the washer.
- Walking carelessly on the panels. Foot traffic can dent the metal and create a serious fall hazard.
- Ignoring metal shavings after installation. Small steel filings can rust and stain the finished roof.
- Using too much sealant as a substitute for flashing. Sealant is not a permanent replacement for correctly formed and installed flashing.
- Skipping roof-deck repairs. Covering rotten or damaged decking does not solve the underlying problem.
- Failing to verify warranty details. Material warranties and contractor workmanship warranties cover different issues.
FAQs
Is corrugated metal roofing good for a house?
Yes, corrugated metal roofing can work well on a house when the panel is approved for residential roofing and installed correctly. It is durable, relatively lightweight, and often less expensive than standing seam metal. Its exposed screws require periodic inspection and maintenance.
Is corrugated roofing cheaper than standing seam?
Corrugated roofing is generally less expensive. It uses simpler panels and usually has exposed fasteners, while standing seam systems use concealed fastening methods and more specialized installation. Roof complexity, metal thickness, finish, labor, and location still affect the final price.
Can corrugated metal roofing leak around the screws?
Yes. Leaks can develop if screws are loose, crooked, overtightened, corroded, or fitted with damaged washers. Correct installation and periodic inspections reduce this risk. A leaking screw should be replaced with a compatible fastener rather than covered carelessly with sealant.
Does corrugated metal roofing make a house hotter?
Not automatically. Roof color, coating, attic insulation, ventilation, underlayment, and local climate all affect indoor temperature. A reflective light-colored metal roof may reduce solar heat absorption, especially in a hot, sunny climate.
Can you walk on a corrugated metal roof?
Some corrugated roofs can support limited foot traffic in specific locations, but walking on them can dent panels and create a severe fall risk. Panel support locations are not always obvious. Homeowners should avoid roof access and use a trained professional.
What is the difference between galvanized and Galvalume roofing?
Galvanized steel has a zinc-based protective coating. Galvalume steel uses a coating primarily made from aluminum and zinc. Both help protect steel from corrosion, but their performance varies by climate, application, cut-edge exposure, and manufacturer specifications.
How often should corrugated roof screws be replaced?
There is no universal replacement schedule. Fastener life depends on installation quality, washer material, climate, panel movement, and corrosion exposure. Have the fasteners inspected periodically and replace loose, damaged, or deteriorated screws with manufacturer-compatible products.
Conclusion
Corrugated metal roofing is a ribbed or wavy panel system that combines strength, efficient drainage, relatively low weight, and practical pricing. It can be a smart choice for houses, garages, cabins, barns, and other structures when the correct panel is matched to the roof.
Its greatest advantages are affordability, durability, and versatility. Its main limitation is the exposed-fastener system, which requires accurate installation and occasional maintenance.
Before making a decision, compare complete roofing specifications rather than choosing by appearance or panel price alone. Ask a qualified metal-roofing contractor to inspect the roof, confirm the required panel rating and slope, and provide a detailed written proposal. That is the safest way to determine whether corrugated metal roofing is the right long-term investment for your home.
