What Is R Panel Metal Roofing? Benefits, Costs, and Uses

If you are comparing metal roofing options, you may have heard contractors mention an “R panel,” “PBR panel,” or “exposed-fastener panel.” These terms can be confusing when you are trying to understand what you are paying for and whether the material is suitable for your home.

So, what is R panel metal roofing? It is a strong, ribbed steel panel system commonly used on barns, garages, workshops, commercial buildings, and some residential roofs. It is usually more affordable than standing seam roofing, but its exposed screws require careful installation and regular maintenance.

This guide explains how R panels work, their advantages and limitations, expected costs, maintenance needs, and how to decide whether they are right for your property.

Quick Answer

R panel metal roofing is a ribbed steel roofing system secured with visible screws that pass through the panels into the roof structure. The panels are strong, economical, and quick to install. However, their exposed fasteners and sealing washers need periodic inspection because loose screws or damaged washers may eventually allow leaks.

What Is R Panel Metal Roofing?

R panel metal roofing is made from long, formed sheets of steel with raised vertical ribs. The ribs strengthen the panel and help move rainwater and melting snow down the roof.

A typical R panel has:

A coverage width of approximately 36 inches
Major ribs spaced about 12 inches apart
Rib heights of roughly 1 to 1¼ inches
Overlapping panel edges
Exposed screws with rubber sealing washers
Factory-applied paint or metallic protective coating

Specifications vary by manufacturer. For example, one manufacturer’s PBR exposed-fastener panel specifications list a 36-inch coverage width, 12-inch rib spacing, a 1¼-inch rib height, and several available steel gauges.

The letter “R” generally refers to the panel’s ribbed profile. A related product called PBR panel includes an additional purlin-bearing leg at the overlap. That extra leg can improve support and alignment where one panel overlaps another.

Homeowners should not assume that every product labeled “R panel” has identical dimensions. Always compare the actual manufacturer’s technical sheet and installation requirements before approving a quote.

How R Panel Roofing Works

R panels are installed vertically from the eave toward the ridge. Each panel overlaps the panel beside it, creating a continuous metal surface.

Screws pass directly through the steel panel and into:

Wood roof decking
Wood framing or purlins
Metal purlins
An approved structural support system

Each roofing screw normally has a metal head and a bonded rubber washer. When properly tightened, the washer compresses against the panel and seals the screw opening.

Because the screw heads remain visible, R panel roofing is called an exposed-fastener roofing system.

The Metal Construction Association’s guidance on profiled metal panel fasteners explains that correct fastener selection is important for creating a strong, weather-resistant connection.

Why the Raised Ribs Matter

The raised ribs are more than a visual feature. They:

Increase the stiffness of the steel
Help prevent large flat areas from flexing
Direct water toward the gutters
Allow panels to span between supports
Create the familiar agricultural or commercial appearance

Smaller grooves may also be formed between the main ribs. These are sometimes called minor ribs, stiffening ribs, or striations.

R Panel vs. PBR Panel

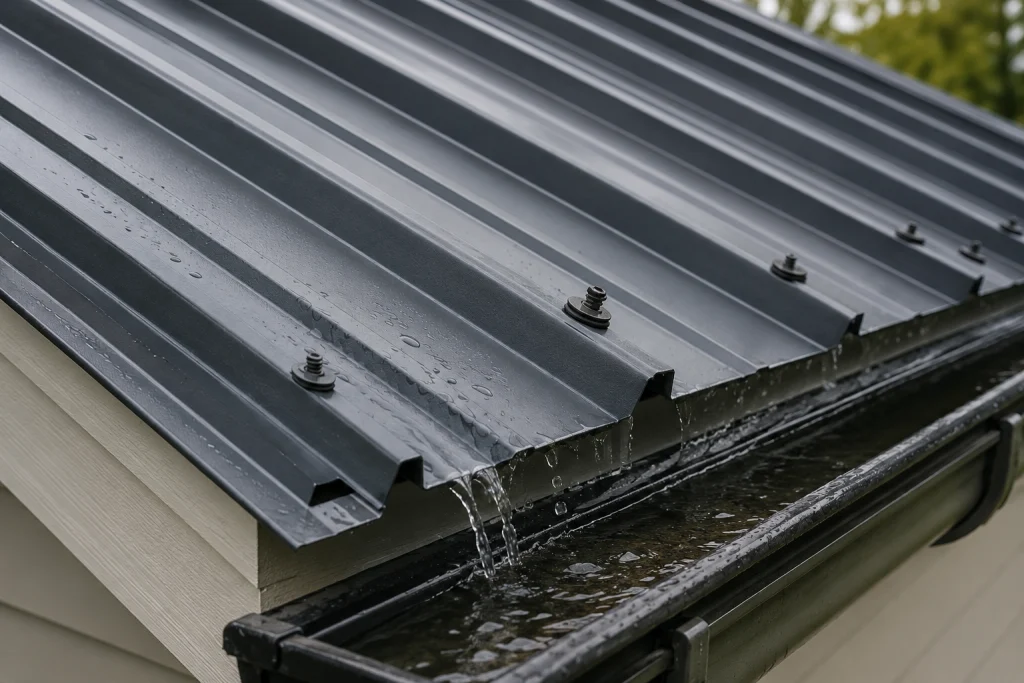

What is R panel metal roofing profile with ribs and exposed screws

R panel and PBR panel are often discussed as though they are the same product. They are similar, but they may not be identical.

A standard R panel generally has a ribbed exposed-fastener profile. A PBR panel usually adds a purlin-bearing leg beneath the overlapping edge.

This extra section provides more metal-to-metal contact at the panel joint. It can help support the overlap and make installation easier over open framing or purlins.

For a homeowner, the practical lesson is simple: ask the contractor for the exact panel name, profile drawing, gauge, coating, and warranty. Do not rely only on a broad term such as “R panel.”

Where Is R Panel Roofing Commonly Used?

R panels have traditionally been used on practical, functional buildings, including:

Agricultural barns
Workshops
Detached garages
Storage buildings
Warehouses
Retail buildings
Equipment shelters
Barndominiums
Porches and additions
Some single-family homes

R panels can be used on residential buildings when local codes, panel specifications, roof slope, underlayment, and fastening requirements are satisfied.

However, the exposed screws give the roof a more industrial or agricultural appearance. Some neighborhoods or homeowners’ associations may prefer standing seam panels, metal shingles, asphalt shingles, tile, or another residential-looking material.

R Panel Metal Roofing Pros and Cons

Factor	Advantages	Limitations
Initial cost	Usually less expensive than standing seam metal	Often costs more than basic asphalt shingles
Strength	Ribbed steel provides good structural stiffness	Performance depends on gauge, support spacing, and installation
Installation	Large panels cover the roof quickly	Incorrect screw placement can cause leaks
Maintenance	Damaged screws and panels can often be replaced	Exposed fasteners require periodic inspection
Appearance	Clean, simple, practical profile	May look too commercial for some homes
Weather resistance	Properly installed panels shed rain effectively	Poor overlaps, flashing, or washers can allow water entry
Energy performance	Reflective finishes may reduce solar heat gain	Results depend on color, coating, insulation, ventilation, and climate
Service life	Can provide long service with proper care	Fasteners and sealants may need attention before the panels wear out

Benefits of R Panel Metal Roofing

Lower Cost Than Many Concealed-Fastener Systems

One of the main reasons homeowners choose R panel roofing is affordability.

The panels are relatively wide and can be installed quickly. The attachment system is also simpler than the clips and mechanically seamed joints used on many standing seam roofs.

This can reduce material and labor expenses. However, the lowest quote is not always the best value. Cheap panels, thin steel, poor coatings, incorrect screws, and rushed flashing work can reduce the roof’s useful life.

Strong and Lightweight

Steel panels provide considerable strength without placing as much weight on the structure as some tile or masonry roofing systems.

The ribs help the panels resist bending, but actual wind, snow, and impact performance depends on:

Steel gauge
Panel profile
Fastener spacing
Roof support spacing
Edge and corner fastening
Building height
Local wind exposure
Tested product approvals

A contractor should choose a panel system that meets the applicable building-code requirements for your location.

Fast Coverage

R panels are commonly manufactured in long lengths. A single panel may run from the eave to the ridge without a horizontal joint.

Fewer horizontal joints can reduce potential leak locations. Long panels also allow installers to cover large roof areas efficiently.

Wide Range of Colors and Finishes

R panels are available in numerous factory-painted colors and metallic finishes. Options may include:

White
Light gray
Charcoal
Black
Brown
Green
Red
Galvalume-style metallic finishes

Lighter or specially reflective roof finishes may reduce heat absorbed from sunlight. The U.S. Department of Energy notes in its guidance on energy-efficient cool roofs that cool-roof benefits are generally greatest in hot climates, while climate should be considered because reduced winter heat gain may be less beneficial in colder regions.

Roof color alone does not determine indoor comfort. Attic insulation, air sealing, ventilation, roof assembly design, and local weather also matter.

Easier Component Replacement

When damage is limited to a panel, trim piece, or group of screws, the affected components may be replaceable without removing the entire roof.

Replacement is not always simple, though. Long panels overlap one another, and removing a middle panel can disturb adjacent sheets and fasteners. Repairs should preserve the original water-shedding pattern.

Limitations of R Panel Roofing

Exposed Fasteners Need Maintenance

The most important limitation is the exposed screw system.

Metal expands when heated and contracts as it cools. Over many temperature cycles, movement can place stress on screws and washers. Fasteners may eventually become loose, tilted, backed out, corroded, or over-compressed.

Rubber washers can also harden, split, flatten, or deteriorate.

A roof may look sound from the ground while small fastener problems are developing. Periodic professional inspection is therefore valuable.

Installation Quality Is Critical

R panel roofing is not automatically waterproof simply because it is metal.

Common leak locations include:

Incorrectly driven screws
Missing or damaged washers
Poorly aligned side laps
Improper ridge caps
Weak eave or rake flashing
Unsealed penetrations
Incorrect pipe boots
End laps installed against water flow
Panels cut with tools that damage the coating

One incorrectly placed screw creates a hole through the panel. Moving the screw does not make the first hole disappear; the abandoned opening must be repaired using an approved method.

More Visible Screws

Some homeowners like the straightforward appearance of R panels. Others dislike the rows of visible fasteners.

Standing seam roofs conceal most fasteners beneath the panel seams. This usually creates a smoother appearance and allows greater controlled thermal movement, but it generally costs more.

Not Ideal for Every Roof Shape

R panels work best on relatively simple sloped roofs.

Roofs with many valleys, dormers, skylights, chimneys, transitions, and short intersecting sections require more cutting and flashing. Complex geometry increases labor and the number of potential water-entry points.

Low-slope applications also require special attention. The panel manufacturer’s minimum slope is only one part of the decision. Local code, seam details, underlayment, panel length, roof exposure, and drainage conditions must also be evaluated.

R Panel vs. Standing Seam Metal Roofing

Feature	R Panel Roofing	Standing Seam Roofing
Fasteners	Visible through the panel	Mostly concealed
Typical cost	Lower	Higher
Appearance	Agricultural or commercial	Smooth and architectural
Thermal movement	More restricted by through-fasteners	Better accommodated by clips or slotted connections
Maintenance	Fasteners need regular attention	Usually fewer exposed fastener concerns
Installation	Simpler but still requires skill	More specialized
Best use	Garages, barns, simple homes, workshops	Homes, architectural projects, long-term premium applications

Neither system is automatically right for every property.

R panel roofing may be a practical choice when budget, strength, and simple construction matter most. Standing seam may be a better long-term choice when appearance, concealed fastening, complex architecture, and reduced fastener maintenance are priorities.

How Much Does R Panel Metal Roofing Cost?

R panel costs vary widely across the United States. A reliable estimate requires an onsite inspection and a written scope of work.

The final price may depend on:

Roof size and pitch
Number of roof sections
Panel gauge
Steel coating and paint system
Custom panel lengths
Removal of existing roofing
Replacement of rotten decking
Underlayment type
Flashing complexity
Number of penetrations
Local labor rates
Building-code requirements
Permits and disposal
Wind or snow-load requirements
Access around the property

Do not compare quotes only by total price. Ask each contractor to identify the panel manufacturer, product name, steel gauge, coating, finish, fastening pattern, underlayment, trim details, warranties, and decking repairs included.

Understanding Metal Gauge

Gauge refers to the approximate thickness of the steel. With common sheet-metal gauge systems, a lower gauge number generally indicates thicker steel.

For example, 24-gauge steel is normally thicker than 26-gauge steel, while 26-gauge steel is normally thicker than 29-gauge steel.

Thicker is not automatically necessary for every home. The correct gauge depends on the tested panel system, support spacing, design loads, roof use, and local requirements.

A contractor should not substitute a thinner panel merely because it looks similar from the ground.

How Long Does R Panel Roofing Last?

There is no single guaranteed lifespan for every R panel roof.

Service life depends on:

Steel quality
Metallic coating
Paint system
Climate
Coastal salt exposure
Industrial pollution
Roof slope
Drainage
Installation quality
Fastener condition
Maintenance
Foot traffic
Tree debris
Dissimilar-metal contact

The panel surface may remain usable for many years while screws, washers, sealants, boots, or flashing require earlier attention.

Do not assume that “metal lasts for decades” means the roof can be ignored for decades. Maintenance of the attachment and flashing system is essential.

Signs an R Panel Roof Needs Attention

Watch for:

Screws sitting above the panel
Missing screw heads
Cracked or displaced washers
Rust around fasteners
Water stains in the attic
Damp insulation
Loose ridge or edge trim
Bent or lifted panel edges
Gaps at side laps
Failed pipe boots
Peeling paint
Scratches exposing bare metal
Ponding or slow drainage
Repeated sealant patches

A few damaged fasteners may be repairable. Widespread corrosion, numerous enlarged screw holes, repeated leaking, or badly installed flashing may justify a more extensive restoration or replacement.

How R Panel Roofing Should Be Maintained

Homeowners should inspect the roof visually from the ground and arrange professional roof checks based on the building’s exposure, age, warranty requirements, and recent weather events.

A typical maintenance review may include:

Inspecting fasteners: Check for loose, missing, tilted, corroded, underdriven, or overdriven screws.
Checking washers: Look for splitting, hardening, displacement, or excessive compression.
Reviewing seams: Confirm that overlaps remain tight and properly sealed where required.
Examining flashing: Inspect valleys, ridges, eaves, walls, chimneys, vents, and pipe penetrations.
Removing debris: Clear leaves and branches that trap moisture or obstruct drainage.
Checking gutters: Make sure water can leave the roof without backing up at the eave.
Looking inside: Check the attic after heavy rain for stains, damp wood, wet insulation, or daylight through openings.
Documenting changes: Keep dated photographs and inspection reports for warranty and maintenance records.

Avoid coating every fastener with random sealant as a substitute for identifying the actual problem. Some sealants are incompatible with metal coatings, and surface patches may hide loose or incorrectly installed screws.

Expert Tip:

Before approving an R panel roof, ask the contractor to show you a sample panel, screw, washer, side-lap detail, and flashing diagram. This makes it easier to compare bids and prevents vague material substitutions after the contract is signed.

Can R Panels Be Installed Over Shingles?

In some areas, a metal roof may be installed over an existing layer of asphalt shingles. However, this is not automatically appropriate for every home.

Before installation, the contractor should evaluate:

Local building-code limits
Number of existing roof layers
Condition of the roof deck
Existing leaks or trapped moisture
Roof flatness
Added weight
Underlayment requirements
Fastener penetration
Ventilation
Manufacturer instructions
Flashing height at walls and penetrations

Installing new panels over a damaged roof does not repair rotten decking or wet insulation. Hidden deterioration should be corrected first.

A rough or uneven shingle surface may also affect the appearance of the metal panels. Some assemblies use approved underlayment, separation material, battens, or purlins, but the design must be suitable for the specific panel and building.

Is R Panel Roofing Energy Efficient?

R panel roofing can be part of an energy-efficient roof assembly, but the metal panel is only one component.

Energy performance is influenced by:

Roof color and solar reflectance
Thermal emittance
Attic insulation
Air leakage
Ventilation
Radiant barriers
Roof-deck design
Climate
Ductwork location
Interior moisture control

A reflective finish may reduce solar heat absorption, especially in a warm, sunny climate. However, homeowners should avoid promises that a metal roof will automatically produce a specific utility-bill reduction.

Ask for documented product performance rather than relying only on color names such as “white,” “silver,” or “cool gray.”

Is R Panel Metal Roofing Noisy?

Metal roofing can sound louder during heavy rain when installed over open framing with little insulation.

On a typical home with solid roof decking, underlayment, attic insulation, ceilings, and interior finishes, the difference may be much less noticeable.

Noise depends on the complete assembly, not simply whether the roof surface is metal.

Discuss noise control before installation if the roof covers:

A bedroom
A cathedral ceiling
A porch
A workshop
An open-framed building
A room without an attic

Adding insulation or selecting an appropriate roof assembly is easier before the panels are installed.

Can You Walk on R Panel Roofing?

R panel roofs may be walkable in certain locations, but walking on them can be hazardous and may damage the panels.

The safe stepping areas depend on the panel profile, support locations, roof slope, surface condition, and manufacturer’s instructions. Stepping in an unsupported area can crease or dent the steel.

Metal may become extremely slippery when wet, dusty, frosted, or covered with pollen.

According to OSHA’s residential fall-protection guidance, roofing work presents serious fall hazards and requires appropriate protective measures for workers. Homeowners should not climb onto a roof simply to inspect screws or clean a small area.

Use binoculars, ground-level photographs, attic observations, or a qualified roofing professional instead.

When to Call a Roofing Professional

Call a qualified metal roofing contractor when you notice:

Active leaks
Water staining in the attic
Loose or missing panels
Widespread screw movement
Cracked washers across several roof areas
Rust around many fasteners
Storm or wind damage
Damaged ridge, rake, or valley flashing
Leaks around vents, skylights, or chimneys
Repeated failures after previous repairs
Soft or rotten roof decking
An uncertain roof slope or fastening pattern

Professional help is also recommended before purchasing a new R panel roof.

A contractor should inspect the structure, measure the roof, identify drainage and flashing requirements, confirm code compliance, and provide a product-specific installation plan.

Ask whether the contractor has direct experience with exposed-fastener metal roofing, not only asphalt shingles.

Questions to Ask a Contractor

Before signing a contract, ask:

What is the exact manufacturer and panel name?
Is it an R panel, PBR panel, or another profile?
What steel gauge will be installed?
What coating and paint system are included?
What is the panel’s approved minimum slope?
How will the panels be attached?
What fastener type and washer material will be used?
Will screws enter decking, framing, or purlins?
How will valleys and penetrations be flashed?
Is tear-off included?
How will damaged decking be priced?
What workmanship warranty is provided?
What manufacturer warranties apply?
Who is responsible for registering the warranty?
Are permits, cleanup, and disposal included?

Get all important specifications in writing. A verbal promise is difficult to enforce after the old roof has been removed.

Common Mistakes Homeowners Should Avoid

Choosing only by price: A low bid may use thinner steel, weaker coatings, generic screws, or incomplete flashing.
Assuming all R panels are identical: Dimensions, gauge, coatings, approvals, and minimum slopes vary by product.
Ignoring roof slope: A panel approved for one slope may not be suitable for a lower-slope roof.
Accepting vague contracts: The contract should list the manufacturer, product, gauge, finish, underlayment, trim, fasteners, and warranty.
Overtightening screws: An overdriven screw can crush or split the sealing washer.
Underdriving screws: A loose washer may not seal the opening.
Using ordinary hardware-store screws: Roofing screws must be compatible with the panel, substrate, environment, and attachment requirements.
Applying sealant over every problem: Sealant cannot correct rotten decking, loose panels, enlarged holes, or incorrect flashing.
Walking on the roof without training: Metal surfaces can be slippery, and incorrect foot placement can damage panels.
Ignoring small leaks: Water can travel along framing or underlayment before appearing inside the home.
Mixing incompatible metals: Contact between certain metals can accelerate corrosion.
Hiring a contractor without metal-roofing experience: Exposed-fastener systems require product-specific fastening and flashing knowledge.

Is R Panel Metal Roofing Right for Your Home?

R panel roofing may be a good choice when:

You want a practical metal roof at a moderate cost
Your roof has a simple shape
You accept visible fasteners
The appearance suits your home or outbuilding
You are willing to schedule periodic inspections
A suitable tested panel is available for your location
The contractor has exposed-fastener roofing experience

Another material may be more appropriate when:

You want a smooth, high-end residential appearance
You prefer concealed fasteners
Your roof is highly complex
You want to reduce exposed-screw maintenance
Your homeowners’ association restricts panel styles
The roof slope is outside the product’s approved range
Coastal or corrosive exposure requires a different specification

The best decision should balance initial cost, appearance, maintenance, local weather, structural requirements, and long-term ownership plans.

FAQs

What does the “R” in R panel roofing mean?

The “R” generally refers to the panel’s raised rib profile. Manufacturers may use different names and dimensions, so review the actual profile drawing rather than relying only on the letter.

Is R panel roofing good for residential homes?

Yes, R panels can be used on some homes when the product, roof slope, structural support, fastening, underlayment, and flashing meet manufacturer and code requirements. The visible screws create a more practical or commercial appearance.

Does R panel metal roofing leak?

A properly designed and installed R panel roof should shed water effectively. Leaks may develop when screws loosen, washers deteriorate, seams are installed incorrectly, or flashing around edges and penetrations fails.

What is the difference between R panel and standing seam roofing?

R panel roofing uses visible screws driven through the panels. Standing seam roofing conceals most fasteners beneath raised seams. R panels usually cost less, while standing seam generally offers a smoother appearance and fewer exposed-fastener maintenance concerns.

How often should R panel screws be replaced?

There is no universal replacement schedule. Fastener life depends on installation, washer quality, climate, roof movement, and exposure. Screws should be inspected periodically and replaced when loose, corroded, damaged, or no longer sealing properly.

Can R panel roofing be installed on a low-slope roof?

Some R or PBR panels are approved for relatively low slopes, but the exact minimum varies by product and assembly. Follow the manufacturer’s current specifications, local code, and project-specific drainage requirements.

Is 26-gauge R panel better than 29-gauge?

Twenty-six-gauge steel is normally thicker than 29-gauge steel, but thicker material is not the only measure of roof quality. Panel testing, coating, support spacing, fasteners, installation, and local design loads are also important.

Conclusion

R panel metal roofing is a ribbed steel roofing system attached with visible screws and sealing washers. It offers strong panels, fast installation, a practical appearance, and a lower initial cost than many concealed-fastener metal roofs.

Its main limitation is the exposed fastening system. Screws, washers, seams, and flashing must be installed correctly and inspected over time.

When deciding what is R panel metal roofing and whether it is suitable for your home, focus on the complete system—not only the steel sheets. Request a detailed written quote, confirm the panel specifications, and hire a contractor with proven exposed-fastener metal roofing experience. A careful inspection and product-specific proposal are the best next steps before committing to the project.

Author

Daniel Brooks

I’m Daniel Brooks, founder and writer at Roofers Gazette. I share practical roofing guides, repair tips, product comparisons, and homeowner advice to help readers make smarter, safer, and more confident roofing decisions.
