How to Fasten Metal Roofing Correctly: Homeowner Guide

Fastening metal roofing may look as simple as driving screws through metal panels, but small mistakes can create leaks, rust, loose panels, and expensive repairs. Learning how to fasten metal roofing correctly means choosing compatible screws, following the panel manufacturer’s fastening pattern, driving every screw straight, and applying the right amount of pressure.

This guide explains the difference between exposed and concealed fasteners, the tools and materials required, the correct installation process, common mistakes, warning signs, safety concerns, and when professional installation is the smarter choice.

Quick Answer

To fasten metal roofing, use manufacturer-approved roofing screws or concealed clips that match the panel and roof structure. Position each fastener according to the installation diagram, drive it perpendicular to the panel, and tighten it only enough to compress the sealing washer without crushing it. Never guess the spacing or screw location.

Understand Your Metal Roofing System First

Before purchasing screws or climbing onto the roof, identify the type of metal roofing system being installed. Metal roofs generally use either exposed or concealed fasteners.

Exposed-Fastener Metal Roofing

Exposed-fastener panels are secured by screws driven directly through the face of the metal and into the roof deck, wood framing, or metal purlins below.

Each roofing screw normally includes an EPDM rubber sealing washer. When installed correctly, the washer forms a watertight seal around the screw hole.

Exposed-fastener systems are commonly used on:

Corrugated metal roofing
Agricultural buildings
Garages and workshops
Sheds and outbuildings
Some residential roofs
Ribbed or through-fastened panels

These systems are generally less expensive than standing seam roofing. However, their exposed washers and screws require periodic inspection because they remain exposed to sunlight, temperature changes, rain, and snow.

Concealed-Fastener Metal Roofing

Concealed-fastener systems hide the attachment points beneath panel seams. Standing seam metal roofing is the most familiar example.

The panels may be secured with:

Hidden clips
Slotted fastening flanges
Pancake-head screws
Snap-lock or mechanically seamed connections

The hidden clips secure the panels while allowing controlled thermal movement. This matters because metal expands when heated and contracts when cooled.

The Metal Construction Association’s standing seam guidance explains that clip attachment plays an important role in allowing panel movement without placing unnecessary fatigue on the connections. (metalconstruction.org)

Do not substitute exposed roofing screws for clips specified in a standing seam system. Doing so can restrict panel movement, damage the roof, and affect the product warranty.

What Fasteners Should Be Used for Metal Roofing?

The correct fastener depends on four main factors:

The metal panel material
The supporting roof structure
The panel manufacturer’s requirements
The roof’s wind and weather exposure

Roofing Screws for Wood Decking

For panels attached to plywood, oriented strand board, wood purlins, or solid wood framing, use screws specifically designed for metal-to-wood connections.

These screws commonly have:

Coarse threads
A sharp or self-piercing point
A corrosion-resistant coating
A hex washer head
An EPDM sealing washer

The screw must be long enough to pass through the metal panel and properly engage the approved wood substrate. The required penetration should come from the roofing manufacturer’s installation instructions rather than a general rule.

Roofing Screws for Metal Framing

Panels attached to steel purlins or metal framing normally require self-drilling screws designed for metal-to-metal fastening.

The drill point, thread design, screw diameter, and length must match the thickness of the framing. A screw intended for thin steel may not perform correctly in thicker structural steel.

Fastener Compatibility Matters

Using the wrong metal fastener can cause galvanic corrosion, which occurs when incompatible metals remain in contact under certain environmental conditions.

The Metal Construction Association fastener compatibility guide recommends selecting fasteners with corrosion resistance equal to the roofing material and using the same material as the roof whenever practical. Coastal, industrial, and chemically aggressive environments may require more specialized fasteners. (metalconstruction.org)

For example, ordinary galvanized fasteners should not automatically be used on aluminum, copper, or specialty-coated panels without written manufacturer approval.

Primary and Secondary Fasteners

Metal roofing may require more than one fastener type.

Primary fasteners connect the roofing panel to the roof structure and resist loads such as wind uplift.

Secondary fasteners may be used for:

Panel side laps
Trim attachment
Flashing
Ridge caps
Closure systems
Panel-to-panel stitching

A lap screw is not necessarily strong enough to replace a structural panel fastener. Keep each fastener type separated and clearly labeled during installation.

Tools Needed to Fasten Metal Roofing

A controlled fastening tool is more important than raw power.

Recommended tools and equipment may include:

Variable-speed screw gun
Adjustable clutch or depth-control attachment
Manufacturer-approved hex socket
Tape measure
Chalk line
Framing square
Marking pencil
Clean, soft-soled footwear
Metal snips, shears, or nibblers
Broom or soft brush
Approved fall-protection equipment
Eye and hand protection

The Metal Construction Association’s fastening tool guidance recommends screw guns with adjustable clutches or depth-sensing nosepieces. It also warns that impact drivers can overdrive screws, damage sealing washers, chip coatings, break fasteners, and strip threads. (metalconstruction.org)

An impact driver is fast, but it is difficult to control consistently. A variable-speed screw gun provides better control over washer compression and screw depth.

Where Should Screws Be Placed?

There is no universal screw-placement pattern for every metal roof.

Depending on the panel profile, screws may be installed:

In the panel flat
Through a designated rib
Beside a major rib
Along a concealed fastening flange
Through clips attached below the seam
At specified panel laps and trim locations

Some manufacturers require screws in the flat because the panel rests directly against the structure there. Other systems have tested attachment details that place fasteners in a rib or another specific location.

Always use the installation diagram for the exact panel model. Do not rely on a general internet diagram that may show a different panel profile.

Fastener spacing can also change near:

Eaves
Rakes
Ridges
Roof corners
Valleys
End laps
High-wind perimeter zones

These areas may experience stronger wind-uplift forces than the central roof area. The required pattern may therefore be based on engineered wind-load calculations, local building codes, and product testing.

How to Fasten Metal Roofing Step by Step

1. Read the Manufacturer’s Installation Manual

Confirm the following before starting:

Approved substrate
Minimum roof slope
Underlayment requirements
Panel overlap direction
Required fastener model
Screw or clip spacing
Fastener location
Trim and flashing details
Sealant requirements
Wind-load restrictions

Manufacturer details are product-specific. For example, the ABC metal roofing installation manual requires installers to check substrate alignment, follow its published fastening guidance, and remove metal filings after drilling or cutting.

2. Inspect the Roof Deck and Framing

The roof surface should be structurally sound, dry, smooth, and properly aligned.

Repair problems such as:

Rotten decking
Loose sheathing
Uneven framing
Raised nail heads
Damaged underlayment
Sagging roof sections
Moisture-stained wood
Unsupported panel edges

Fasteners cannot compensate for a weak or uneven roof deck. Installing panels over a distorted surface can create gaps, waviness, poor seams, and uneven screw pressure.

3. Install the Underlayment and Edge Components

Install the specified underlayment, drip edge, eave trim, closure components, and other required materials in the correct sequence.

Do not treat metal panels as the only water-control layer. Proper underlayment and flashing provide protection if wind-driven water passes beneath a panel joint.

4. Square the First Panel

The first panel controls the alignment of every panel that follows.

Position it square to the eave and rake. Measure at multiple points before fastening it permanently.

A small alignment error at the first panel can become a major problem across the roof, leaving the final panel crooked or too narrow.

5. Mark the Fastening Lines

Use a chalk line, framing references, or visible purlin locations to mark where the fasteners must enter the structure.

This prevents screws from missing rafters, purlins, or other required attachment points.

Do not assume that every visible section of roof decking provides enough holding strength. Some systems must connect directly to framing, while others are tested over specific solid-deck materials.

6. Set the Screw Gun Correctly

Use a low, controlled speed and adjust the clutch before fastening the main roof.

Practice on a scrap panel and matching substrate. The goal is consistent washer compression without damaging the metal surface.

Hold the screw perpendicular to the panel in both directions. An angled screw creates uneven washer pressure and may leave an opening where water can enter.

7. Drive Each Fastener to the Correct Depth

A properly installed exposed fastener should:

Sit straight
Pull the panel firmly against the structure
Compress the washer evenly
Avoid excessive washer bulging
Avoid dimpling the panel
Remain secure without spinning

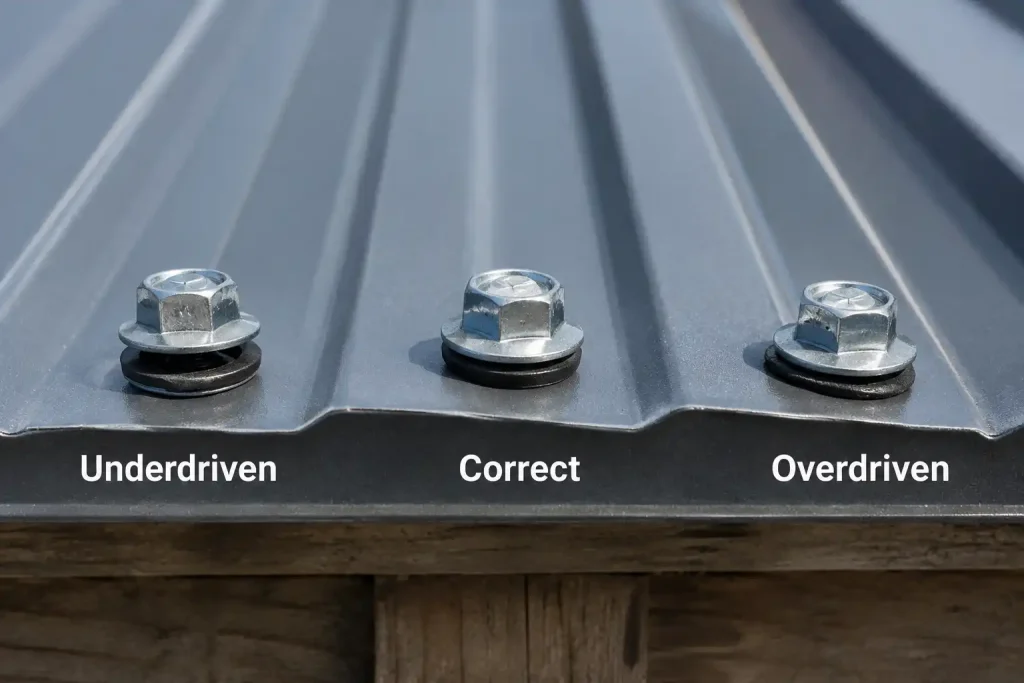

There are three common conditions:

Fastener condition	What it looks like	Likely result
Underdriven	Washer is loose or barely touching	Water can enter beneath the washer
Correctly driven	Washer is evenly compressed	Secure, weather-resistant connection
Overdriven	Washer is crushed or pushed outward	Damaged washer, distorted panel, possible leak

Stop tightening as soon as the washer forms the specified seal. More torque does not automatically create a stronger or more watertight connection.

8. Continue With the Required Fastening Pattern

Follow the panel diagram row by row. Check alignment regularly instead of installing several panels before inspecting the work.

At panel laps:

Maintain the specified overlap
Use approved stitch screws where required
Keep lap fasteners separate from structural fasteners
Apply sealant or tape only where specified
Avoid creating unnecessary holes

Never add extra screws randomly to make a panel “feel stronger.” Unplanned penetrations can interfere with thermal movement and introduce additional leak points.

9. Fasten Flashing and Trim Correctly

Ridge caps, rake trim, valleys, sidewalls, end walls, and roof penetrations often use different screws and spacing than the main panels.

Follow the detail drawing for each location. Flashing fasteners should not be placed where they interrupt drainage or puncture a hidden water channel unless the system specifically requires it.

10. Clean and Inspect the Roof

Remove all:

Drill shavings
Metal fragments
Loose screws
Rivet stems
Sealant scraps
Packaging
Dirt trapped in seams

Metal filings can rust and stain the finished panels. Inspect every fastening row while the work is still accessible.

Expert Tip

Expert Tip: Before installing the first full panel, make a small test connection using the actual screw, panel scrap, substrate, socket, and screw gun. Adjust the clutch until the washer seals evenly, then keep the same controlled setting while checking it regularly.

Should Screws Be Predrilled?

Predrilling may improve alignment when several exposed-fastener panels are carefully stacked and prepared according to the manufacturer’s instructions. It can help create straight fastening rows and reduce drill-point wandering.

However, predrilling is not appropriate for every panel or screw system. Poorly aligned stacks can create oversized or misplaced holes.

Predrilling may also:

Damage protective coatings
Leave metal shavings between panels
Create holes larger than necessary
Reduce sealing reliability
Affect product warranties

Use this method only when the panel and fastener manufacturer allows it.

How Much Does Professional Metal Roof Fastening Cost?

Fastening is normally included within the total installation price rather than charged as a separate service. The final cost depends on:

Roof size and pitch
Panel type
Roof complexity
Deck repairs
Tear-off requirements
Fastener or clip system
Flashing complexity
Local labor rates
Wind-load requirements
Accessibility and safety needs

A simple exposed-fastener roof may require less labor than a mechanically seamed standing seam system. However, lower initial cost does not mean that fastening accuracy matters less.

Consideration	DIY installation	Professional installation
Upfront labor cost	Lower	Higher
Fall risk	High for inexperienced homeowners	Managed with training and equipment
Fastener consistency	Depends on experience	Usually more controlled
Warranty protection	May be limited by installation terms	Often easier to document
Complex flashing	Difficult	Handled by experienced installers
Wind-load compliance	Easy to misunderstand	Can follow engineered specifications
Best suited for	Small, low-risk structures	Homes and complex roofing systems

Warning Signs of Poorly Fastened Metal Roofing

Inspect an exposed-fastener roof periodically and after severe storms. Look for:

Screws backing out
Missing fasteners
Cracked or displaced washers
Rust around screw heads
Crooked screws
Loose panel edges
Panels moving in strong wind
Elongated screw holes
Water stains in the attic
Dents around fastener locations
Sealant separating from laps
Repeated leaks along screw rows

One loose screw may be repairable. Widespread movement, repeated leaks, or hundreds of aging washers may justify a professional assessment instead of spot repairs.

Common Mistakes Homeowners Should Avoid

Using ordinary construction screws: Standard deck or wood screws are not designed to seal metal roofing penetrations.
Assuming every panel uses the same screw pattern: Fastener placement varies by panel profile, substrate, wind zone, and manufacturer.
Using an impact driver at full power: Excessive torque can crush washers, strip threads, damage coatings, and distort panels.
Driving screws at an angle: A tilted screw creates uneven pressure and an unreliable seal.
Overtightening the washer: A crushed washer may split or deteriorate prematurely.
Leaving screws too loose: An uncompressed washer cannot properly seal the hole.
Missing the framing: A screw that fails to engage the required structure provides little resistance to wind uplift.
Using incompatible metals: Dissimilar metals may corrode prematurely, especially in coastal or industrial environments.
Adding sealant over every screw: Surface sealant is not a substitute for correct fastener installation and may hide problems.
Ignoring metal shavings: Drill filings can rust and permanently stain the panel coating.
Walking carelessly on panels: Metal roofs can be slippery, and stepping in unsupported areas may bend the panels.
Mixing fastener types: Structural screws, stitch screws, trim screws, rivets, and concealed clips are not interchangeable.

When to Call a Roofing Professional

Fastening metal roofing involves both technical installation risks and serious fall hazards.

The OSHA residential fall-protection resources emphasize the importance of proper fall protection during residential roofing work. Professional crews working six feet or more above a lower level are generally required to use compliant protection methods. (OSHA)

Call a qualified metal roofing contractor when:

The roof is steep, high, wet, or difficult to access
The home has multiple valleys, dormers, skylights, or chimneys
The panels use concealed clips or mechanically seamed joints
The roof requires engineered wind-uplift fastening
The deck is soft, uneven, or water-damaged
Local permits or inspections are required
You cannot confirm the correct screw pattern
The roof has widespread loose or leaking fasteners
Panels have elongated holes or significant movement
The manufacturer requires approved installation for warranty coverage

A contractor should be able to identify the panel system, explain the required fastening schedule, confirm fastener compatibility, and show how valleys, penetrations, ridges, and edges will be detailed.

Ask for written information rather than accepting vague statements such as “we always install it this way.”

FAQs

How far apart should screws be on metal roofing?

Fastener spacing depends on the panel system, roof structure, wind-load requirements, and manufacturer testing. Do not use one standard spacing for every roof. Follow the fastening diagram supplied for the exact panel model.

Should metal roofing screws go in the flat or the rib?

It depends on the panel design. Some manufacturers require screws in the flat, while other profiles use different tested locations. The correct position is the one shown in the product’s installation manual.

Can I use regular screws for metal roofing?

No. Use roofing fasteners designed for the panel material and supporting structure. Exposed fasteners normally require corrosion-resistant heads and approved sealing washers.

How tight should metal roofing screws be?

Tighten the screw until the sealing washer is evenly compressed and the panel is secure. Do not crush the washer or create a deep dimple in the panel.

Can I use an impact driver to install metal roofing screws?

An adjustable-clutch screw gun is the safer choice for consistent fastening. Impact drivers can apply excessive torque and may damage washers, coatings, screw heads, or threads.

Why do metal roofing screws back out?

Possible causes include thermal movement, insufficient substrate engagement, overtightening, stripped threads, panel vibration, aging washers, improper screw selection, or movement in the roof structure.

Can loose metal roof screws simply be tightened?

A slightly loose screw may sometimes be reset if the hole and washer remain sound. If the hole is enlarged, the washer is damaged, or the screw no longer grips, a manufacturer-approved repair fastener or professional repair detail may be necessary.

Conclusion

Learning how to fasten metal roofing begins with understanding that the screws, clips, spacing, and attachment locations are part of an engineered roofing system. Correct installation requires compatible fasteners, a sound roof deck, accurate panel alignment, controlled screw pressure, proper flashing, and strict attention to the manufacturer’s instructions.

For a small, low-slope outbuilding, an experienced homeowner may be able to complete the work safely with the correct manual and equipment. For a house, standing seam system, steep roof, or complex installation, hire a qualified metal roofing contractor.

Before approving the work, ask the installer to identify the panel manufacturer, show you the fastening diagram, explain the fastener material and washer type, and confirm how the installation meets local wind and building-code requirements.

Author

Daniel Brooks

I’m Daniel Brooks, founder and writer at Roofers Gazette. I share practical roofing guides, repair tips, product comparisons, and homeowner advice to help readers make smarter, safer, and more confident roofing decisions.
