How Much Overlap for Metal Roofing? A Homeowner’s Practical Guide
Installing metal roofing panels with the correct overlap is essential for keeping rain, wind-driven water, and debris out of your home. Too little overlap can create leaks. Too much overlap can waste material, distort the panels, and make the roof difficult to align.
So, how much overlap for metal roofing is normally required? The answer depends on whether you are measuring a side lap or an end lap, as well as the panel profile, roof slope, sealant requirements, and manufacturer’s instructions.
This guide explains the common overlap ranges, how different panel systems fit together, what can go wrong, and when professional installation is the safer choice.
Quick Answer
Most exposed-fastener metal roofing panels overlap one full rib or corrugation along the sides. When two panels meet from top to bottom, the end overlap is commonly 6 to 12 inches. Always use the panel manufacturer’s instructions because roof slope, panel design, sealant, and weather exposure can change the required overlap.
What Does Metal Roofing Overlap Mean?
Metal roof overlap is the area where one roofing panel covers part of another panel. The overlap creates a continuous path that directs water down the roof and into the gutter.
There are two main types of panel overlap:
- Side lap: Where panels overlap along their long vertical edges
- End lap: Where the lower end of an upper panel overlaps the upper end of a lower panel
A side lap normally follows the panel’s raised rib or corrugation. An end lap is measured in inches because it crosses the panel horizontally.
These two joints perform different jobs and should not be treated the same way.
How Much Should Metal Roofing Overlap?
The table below provides practical starting points for common residential applications.
| Metal roofing connection | Common overlap | Important consideration |
|---|---|---|
| Exposed-fastener panel side lap | One full rib or corrugation | Follow the panel’s formed overlap edge |
| Corrugated metal side lap | Usually one corrugation | Some low-slope or high-exposure roofs may require more |
| Exposed-fastener panel end lap | Usually 6–12 inches | Sealant and structural support are normally required |
| Standing seam side connection | Factory-designed interlocking seam | Do not measure it as a general inch overlap |
| Metal trim overlap | Often 2–6 inches | Depends on the trim type and manufacturer |
| Very low-slope roof | Manufacturer-specific | May require longer laps or a different roofing system |
These figures are general guidelines, not universal installation rules. Two panels that look similar may have different testing, fastening patterns, and sealant requirements.
For example, the Metal Sales Classic Rib installation guide shows a 6-inch panel end lap with tape sealant and fasteners penetrating both panels into the supporting structure.
However, Fabral’s metal roofing resources describe a minimum 12-inch steel end lap for the system being discussed. This difference shows why homeowners should not choose an overlap based only on a general online recommendation. (Fabral)
Side Overlap for Metal Roofing Panels
Exposed-Fastener Panels
Most exposed-fastener roofing panels have one edge designed to fit over the edge of the previous panel. This usually creates an overlap of one full raised rib.
The formed edges may include:
- An overlapping rib
- An underlapping rib
- An anti-siphon or drainage groove
- A designated location for stitch screws
- A sealant channel
The second panel should sit naturally over the first without being forced or flattened.
Do not measure only the flat width of the overlap. The panel profile determines the effective overlap. A panel advertised as 36 inches wide may be physically wider because part of its width is used in the side lap.
Corrugated Metal Roofing
Traditional corrugated roofing is commonly overlapped by one complete corrugation. The upper corrugation covers the matching curve of the panel below it.
In demanding conditions, a manufacturer may specify additional protection, such as:
- A larger side overlap
- Butyl tape inside the joint
- Closer stitch-screw spacing
- A steeper minimum roof pitch
- A different panel profile
Adding a second corrugation without checking the installation instructions can reduce the roof’s coverage and cause the panel rows to drift out of alignment.
Standing Seam Panels
Standing seam metal roofing does not normally use a simple one-rib overlap. Its side edges snap, fold, or mechanically seam together.
The seam may be:
- Snap-lock
- Mechanical-lock
- Nail-strip
- Clip-fastened
- Batten-style
The connection is controlled by the manufactured seam, clips, and seaming process. Homeowners should not try to increase the overlap by pushing standing seam panels farther together than designed.

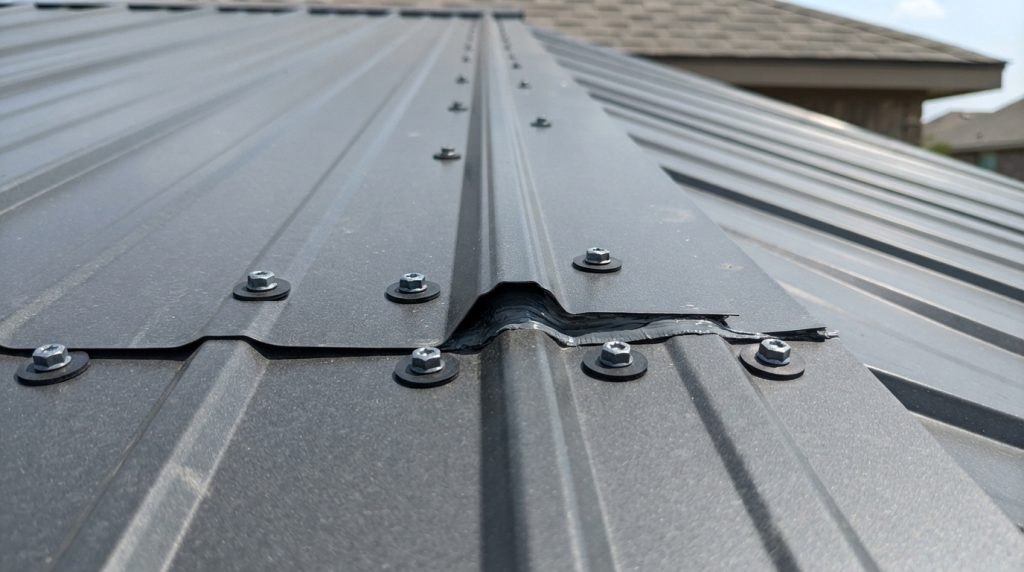

End Overlap for Metal Roofing Panels
An end lap is needed when one panel is not long enough to run continuously from the eave to the ridge.
The upper panel must overlap the lower panel so water flows over the joint rather than into it. A typical residential end lap may range from 6 to 12 inches, but the approved dimension depends on the specific panel system.
The newer Metal Sales PBR-Panel installation guide, for example, specifies a minimum 6-inch end lap and shows tape sealant and fasteners positioned as part of the complete joint.
A correct end lap often includes more than overlapping two pieces of metal. It may also require:
- Continuous butyl tape
- Tube sealant at the side-lap intersections
- Fasteners through both panels
- Solid roof decking, framing, or a purlin beneath the joint
- A specific installation sequence
- Correct placement of upper and lower panel rows
Overlap distance alone does not make an end lap watertight. Sealant placement, support, fastening, and panel alignment are equally important.
Why Full-Length Panels Are Often Better
Whenever practical, contractors commonly order panels long enough to reach from the eave to the ridge without horizontal joints.
Avoiding end laps can provide several benefits:
- Fewer possible leak locations
- Faster installation
- Cleaner appearance
- Less sealant maintenance
- Better water drainage
Long panels can be difficult to transport, lift, and control in wind. They may also require careful planning for thermal movement. The best choice depends on the roof size, access, panel system, and installation crew.
How Roof Slope Affects the Overlap
Roof slope describes how quickly the roof rises. A 4:12 roof rises 4 inches for every 12 inches of horizontal distance.
Water leaves a steep roof more quickly. On a low-slope roof, water moves more slowly and can remain around seams longer. Wind may also push water uphill beneath a poorly sealed joint.
Because of this, low-slope roofs often need:
- A panel approved for the specific slope
- More carefully sealed side and end laps
- Manufacturer-approved butyl tape
- Tighter installation tolerances
- Special standing seam or structural panel systems
Increasing the overlap does not automatically make an unsuitable panel safe for a low-slope roof. The panel must be tested and approved for that application.
Why Manufacturer Instructions Matter
Metal panels are engineered as complete roofing systems. Their weather resistance depends on how the panels, screws, clips, closures, sealants, flashing, and underlayment work together.
The installation manual should identify:
- Minimum roof slope
- Required side-lap orientation
- End-lap dimension
- Sealant type and location
- Fastener pattern
- Approved substrate
- Trim and flashing details
- High-wind installation requirements
Using another company’s instructions because the panels “look the same” is risky. Small profile differences can change where water travels and where fasteners must be placed.
Expert Tip:
Before ordering panels, ask the supplier for the exact installation manual for the panel profile and product code. Confirm the side lap, end lap, usable coverage width, minimum slope, and fastener pattern before calculating material quantities.
How to Plan Metal Roofing Overlap Correctly
1. Identify the Exact Panel
Find the manufacturer, panel name, gauge, profile, and coverage width. Do not rely only on the description “corrugated metal roofing.”
2. Separate Side Laps From End Laps
Side laps run from the eave toward the ridge. End laps cross the roof horizontally.
Marking them separately prevents measurement errors and incorrect material calculations.
3. Check the Required Roof Slope
Measure or confirm the roof pitch. Verify that the chosen panel is approved for that slope.
A panel intended for a steep agricultural roof may not be suitable for a low-slope residential addition.
4. Calculate Using Coverage Width
Use the panel’s coverage width, not its total physical width.
For example, a panel may be physically wider than 36 inches but provide only 36 inches of roof coverage after the side rib is overlapped.
5. Add End-Lap Material
When a roof requires more than one panel from eave to ridge, include the required end overlap in the panel length calculation.
For a 24-foot roof run using two sections with a 6-inch lap, the combined panel lengths must cover at least 24 feet 6 inches before accounting for eave or ridge details.
6. Plan the Joint Over Solid Support
The end lap usually needs framing, a purlin, or solid decking beneath it. Fastening an end joint over an unsupported opening can allow movement and create leaks.
7. Use the Correct Sealant
Many metal roof joints use butyl tape rather than exposed beads of ordinary household caulk.
Butyl tape remains compressed between the panels. The manufacturer’s manual should state its width, thickness, position, and whether tube sealant is also required.
What Happens When Metal Roofing Does Not Overlap Correctly?
Too Little Overlap
Insufficient overlap can allow wind-driven rain to move beneath the panel edge. It may also leave sealant or fasteners too close to the exposed joint.
Possible results include:
- Ceiling water stains
- Damp roof decking
- Mold or insulation damage
- Rust around panel joints
- Leaks during heavy wind
- Loose or vibrating panel edges
Too Much Overlap
More overlap is not always better. Excessive overlap can change the panel layout and reduce the available coverage.
It may cause:
- Wasted panels
- Uneven ribs
- Crooked roof rows
- Fasteners missing the framing
- Raised or distorted seams
- Problems fitting ridge and rake trim
- Incorrect roof width calculations
Incorrect Overlap Direction
The panels should be installed in the orientation shown by the manufacturer. Some exposed-fastener systems are designed so the lapping rib protects an anti-siphon groove or shields the joint from weather.
Reversing the panels can expose the vulnerable side of the seam.
Common Warning Signs of a Poor Panel Lap
Inspect the roof from the ground or from a safe interior location after storms. Look for:
- Panel edges that appear lifted
- Gaps between overlapping ribs
- Missing stitch screws
- Screws driven at an angle
- Loose or damaged washers
- Sealant squeezed completely out of the joint
- Rust lines along horizontal laps
- Water stains beneath panel seams
- Panel ribs that do not line up
- End laps located between structural supports
A leak may appear inside the house several feet away from the defective overlap because water can travel along the underlayment, decking, or framing.
Common Mistakes Homeowners Should Avoid
- Assuming every panel needs the same overlap: Panel profiles and installation systems vary.
- Using total panel width in calculations: Use the manufacturer’s listed coverage width.
- Skipping butyl tape: A wide overlap may still leak without the specified sealant.
- Using general-purpose caulk: Some caulks do not bond well to coated metal or tolerate movement.
- Placing an end lap without support: Horizontal joints normally need solid attachment beneath them.
- Overdriving screws: Excessive pressure can crush washers and deform the panel.
- Underdriving screws: Loose washers cannot seal the fastener hole.
- Ignoring roof pitch: A panel approved for a steep slope may fail on a low-slope roof.
- Creating unnecessary end laps: Full-length panels may provide a cleaner and more reliable installation.
- Working on wet or windy metal roofing: Metal panels can become extremely slippery and difficult to control.
DIY Installation Versus Professional Installation
| Consideration | DIY installation | Professional installation |
|---|---|---|
| Small shed or ground-level structure | May be manageable with proper instructions | Usually straightforward |
| Main house roof | High fall and leak risk | Generally recommended |
| Standing seam system | Requires specialized knowledge and tools | Professional installation strongly recommended |
| Multiple end laps | Easy to seal or align incorrectly | Experienced crew can follow system details |
| Steep or complex roof | Unsafe for most homeowners | Requires trained workers and fall protection |
| Manufacturer warranty | Errors may affect coverage | Qualified installation may protect warranty eligibility |
Metal roofing work involves sharp panel edges, heavy materials, ladders, power tools, and fall hazards. OSHA’s residential fall protection guidance explains that roofing work requires suitable protection against falls, including approved systems for workers exposed to unprotected roof edges. (OSHA)
When to Call a Roofing Professional
Contact a qualified metal roofing contractor when:
- The roof is steep, high, wet, or difficult to access
- Panels must be replaced across a large area
- The roof has repeated leaks at end laps
- The correct panel manufacturer cannot be identified
- The panels are buckled or moving
- Roof decking may be rotten
- A standing seam joint has opened
- The project involves valleys, chimneys, skylights, or several penetrations
- Long panels must be lifted and positioned
- Wind-uplift requirements affect the fastening pattern
- The manufacturer’s details are unclear
Ask the contractor to explain the panel type, required overlap, sealant, support location, and fastening method. A reliable roofer should be able to show how the proposed detail matches the manufacturer’s instructions.
FAQs
Is 2 inches enough overlap for metal roofing?
Two inches may be enough for certain trim pieces, but it is usually not a safe general recommendation for a roofing panel end lap. Many exposed-fastener panel systems require 6 inches or more. Follow the exact installation manual.
Should metal roofing overlap by one or two ridges?
Most exposed-fastener panels overlap by one full raised rib or corrugation. Some panels or severe-weather applications may use a different detail. Do not add a second rib unless the manufacturer requires it.
How much should corrugated metal roofing overlap at the ends?
Corrugated metal roofing commonly uses a 6- to 12-inch end lap. The correct amount depends on the panel profile, slope, framing, sealant, and manufacturer.
Do metal roof overlaps need sealant?
Many end laps and some side laps require butyl tape or another approved sealant. Other systems rely on factory-formed or mechanically locked seams. Use only the sealant and placement shown in the installation instructions.
Which metal roofing panel goes on top at an end lap?
The panel closer to the ridge goes over the panel closer to the eave. This arrangement lets rainwater flow down and over the joint.
Can I add more overlap to stop a roof leak?
Not always. A leak may be caused by missing sealant, loose fasteners, poor flashing, panel damage, or an unsupported joint. Excessive overlap can also create alignment problems. Identify the actual defect before changing the panels.
How does overlap affect the number of metal roofing sheets I need?
Side overlap reduces each panel’s usable coverage width. End overlap increases the total panel length required. Calculate materials using the manufacturer’s coverage width and required lap dimensions rather than the panel’s full physical size.
Conclusion
For most exposed-fastener roofs, the practical answer to how much overlap for metal roofing is one full rib at the sides and approximately 6 to 12 inches at panel ends. However, those numbers are only starting points.
The correct overlap depends on the panel profile, roof slope, sealant, structural support, fastening pattern, and manufacturer’s tested installation method. Before buying or installing panels, obtain the exact product manual and calculate the roof using its listed coverage width.
For a main residence, low-slope roof, standing seam system, or project requiring multiple end laps, have a qualified metal roofing contractor inspect the roof and confirm the joint details before work begins.
