How Many Sheets of Metal Roofing Do I Need? A Homeowner’s Calculation Guide
Ordering metal roofing can feel confusing. Panels come in different widths, lengths, profiles, and overlap requirements. A small measuring mistake may leave you with expensive extra material—or delay your project because you are several panels short.
To answer “how many sheets of metal roofing do I need?”, you must know your roof dimensions, slope length, panel coverage width, and number of roof sections. This guide explains the calculation step by step, provides practical examples, and shows when professional measurements are worth the cost.
Quick Answer
To calculate how many sheets of metal roofing you need, divide the width of each roof plane by the panel’s coverage width and round up. Then multiply by the number of similar roof planes. Panel length should generally run from the eave to the ridge, including the required overhang.
Understand What a Metal Roofing “Sheet” Means
Homeowners often use the words sheet and panel interchangeably. However, metal roofing products are not all the same size.
Common residential options include:
- Exposed-fastener panels with approximately 36 inches of coverage
- Standing seam panels with 12-, 16-, or 18-inch coverage
- Corrugated panels with narrower effective coverage
- Standard-length sheets that require end laps
- Custom-cut panels running continuously from eave to ridge
The important measurement is the coverage width, sometimes called the net coverage width. This is the width remaining after one panel overlaps or connects with the next.
For example, a panel may be physically wider than 36 inches but provide only 36 inches of roof coverage. Manufacturers such as Fabral list both roof requirements and panel coverage in their residential metal panel specifications. Some products cover 36 inches, while certain standing seam systems cover only 16 inches.
Never calculate the quantity using the panel’s total physical width unless the manufacturer confirms that it is also the coverage width.

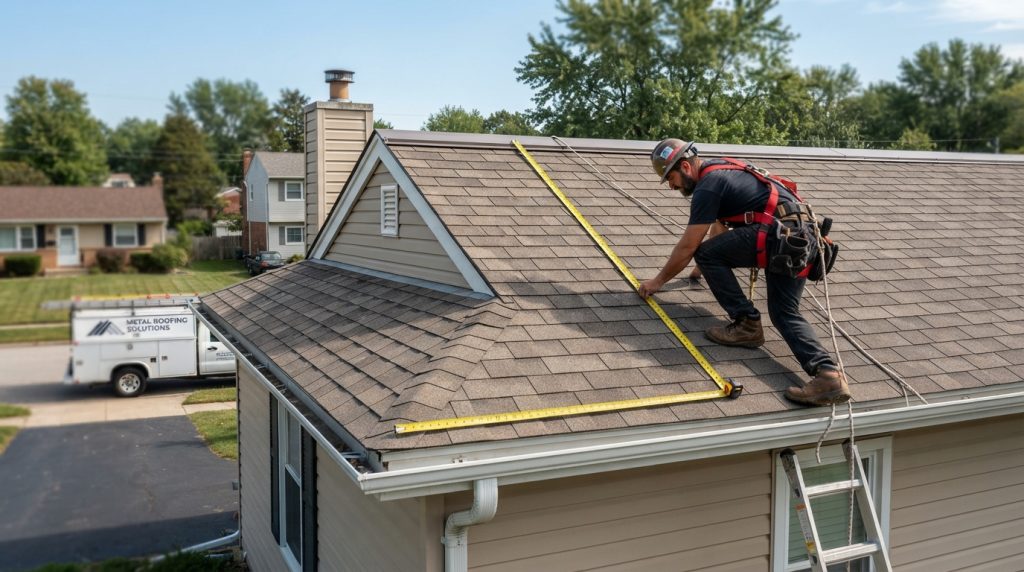

Measurements You Need Before Calculating
Before ordering panels, collect the following information for every roof section:
- Eave width
- Roof slope length
- Roof pitch
- Number of roof planes
- Panel coverage width
- Required panel overhang
- Valley, hip, dormer, chimney, and skylight dimensions
- Manufacturer-required end-lap length, if applicable
A basic gable roof normally has two rectangular roof planes. A hip roof, cross-gable roof, or roof with dormers may have several sections that must be measured separately.
Do not assume both sides are identical. Additions, porches, attached garages, and uneven overhangs can create different measurements.
How to Calculate Metal Roofing Sheets
Step 1: Identify Each Roof Plane
Divide the roof into individual flat sections.
A simple gable roof has two planes. A hip roof normally has four. A roof with valleys and dormers may have many more.
Sketch the roof from above and label each section. Record the width and slope length of every plane.
Step 2: Measure the Width Along the Eave
Metal panels usually run vertically from the eave to the ridge. Therefore, the number of panels is determined by the horizontal width of the roof plane along the eave.
For a rectangular roof plane, use this formula:
Number of panels = Roof-plane width ÷ Panel coverage width
Always use the same measurement units. If the panel coverage is listed in inches, convert the roof width to inches.
Always round the result up to the next whole panel.
Step 3: Calculate the Required Panel Length
For a full-length metal panel, measure from the eave to the ridge along the roof slope.
Do not use the flat horizontal distance unless the roof is completely flat. The sloped distance is longer because it follows the roof pitch.
Your final panel length may also need to include:
- Eave overhang
- Ridge detailing
- Hem or drip-edge requirements
- Field trimming allowance
Ask the panel supplier or installer how much should be added. Overhang and trim requirements vary between systems.
Step 4: Repeat the Calculation for Every Roof Plane
Calculate each roof section individually. Then add all the panels together.
For two equal gable-roof planes:
Total panels = Panels per side × 2
For unequal or complex sections, calculate every plane separately rather than doubling one number.
Step 5: Add a Reasonable Waste Allowance
A small material allowance protects against measurement errors, cutting damage, dents, and unusable offcuts.
A practical starting point is:
| Roof design | Suggested planning allowance |
|---|---|
| Simple rectangular gable roof | 5%–10% |
| Roof with one valley or small porch | 8%–12% |
| Hip roof or multiple valleys | 10%–15% |
| Highly complex roof with dormers | Contractor takeoff recommended |
Do not automatically add 10% to the number of custom-cut, full-length panels. On a simple roof, ordering one or two spare panels may make more sense than adding several panels by percentage.
Confirm the final allowance with your supplier.
Worked Example: Simple Gable Roof
Suppose you have a detached garage with these measurements:
- Building length along the eave: 30 feet
- Building width from eave to eave: 24 feet
- Roof pitch: 4:12
- Metal panel coverage: 36 inches
- Two equal roof planes
First, convert the eave width to inches:
30 feet × 12 = 360 inches
Next, divide by the panel coverage:
360 ÷ 36 = 10 panels per roof plane
The roof has two equal planes:
10 × 2 = 20 panels
You would need 20 primary metal roofing panels, plus any appropriate spare or waste allowance.
The panel length must be calculated separately. Half of the 24-foot building width is a 12-foot horizontal roof run. At a 4:12 pitch, the actual slope length is approximately 12.65 feet before adding the required eave or trim allowance.
The supplier may therefore recommend panels slightly longer than 12 feet 8 inches, depending on the roof details.
Metal Roof Pitch and Slope-Length Factors
Roof pitch describes how many inches the roof rises for every 12 inches of horizontal run. A 4:12 roof rises 4 inches for every 12 inches of run.
You can estimate slope length using a pitch multiplier:
Slope length = Horizontal run × Pitch multiplier
| Roof pitch | Approximate multiplier |
|---|---|
| 3:12 | 1.031 |
| 4:12 | 1.054 |
| 5:12 | 1.083 |
| 6:12 | 1.118 |
| 8:12 | 1.202 |
| 10:12 | 1.302 |
| 12:12 | 1.414 |
For example, a roof with a 15-foot horizontal run and a 6:12 pitch has an estimated slope length of:
15 × 1.118 = 16.77 feet
This is the basic roof-surface length. The final panel order may need additional length for overhang, hemming, and ridge details.
Calculating Different Panel Coverage Widths
Panel width can significantly change the number of sheets required.
Using the same 30-foot-wide roof plane:
| Panel coverage width | Calculation | Panels per plane |
|---|---|---|
| 36 inches | 360 ÷ 36 | 10 |
| 24 inches | 360 ÷ 24 | 15 |
| 18 inches | 360 ÷ 18 | 20 |
| 16 inches | 360 ÷ 16 | 22.5, rounded to 23 |
| 12 inches | 360 ÷ 12 | 30 |
This is why a quote for 20 exposed-fastener panels cannot be directly compared with a quote for 46 standing seam panels. The products may cover the same roof but use different panel widths and installation systems.
A higher panel count does not necessarily mean more roof area or a higher total material cost.
How to Calculate Standard-Length Sheets With End Laps
Full-length panels are generally easier to calculate because one panel runs from the eave to the ridge. However, some buildings use shorter sheets installed in multiple rows.
When sheets must overlap from top to bottom, the overlap reduces the effective length of every additional sheet.
For example:
- Roof slope length: 20 feet
- Sheet length: 10 feet
- Required end lap: 6 inches
The first sheet covers 10 feet. The second adds only 9 feet 6 inches because 6 inches is used for the overlap.
Two sheets would cover only 19 feet 6 inches, so a third sheet would be required unless the layout or sheet length changes.
Do not create horizontal end laps unless the roofing manufacturer allows them. Poorly designed end laps can become leak points, especially on low-slope roofs.
Why Roof Area Alone Is Not Enough
You may see online calculators that divide the roof’s square footage by the area of one metal sheet. That method provides only a rough material estimate.
It can produce the wrong number because it may not account for:
- Panel direction
- Coverage width
- Full-length panel runs
- End laps
- Valleys and hips
- Unusable triangular offcuts
- Custom panel lengths
- Different roof-plane dimensions
Roof area is useful for comparing general material costs. Panel layout is more reliable for determining the exact number of sheets.
For a simple roof, calculate the number of panel columns first. Then determine the correct length for each column.
Measuring Hip Roofs, Valleys, and Dormers
Complex roofs require more planning because many panels must be cut at angles.
Hip Roofs
A hip roof has sloping ends instead of vertical gable walls. Its roof planes may be trapezoids or triangles.
Panels near the hips become progressively shorter. Some offcuts may be reusable on the opposite side, but this depends on panel direction, rib placement, coating, and cut orientation.
Roof Valleys
Valleys occur where two roof planes meet and channel water downward. Panels must be cut carefully along the valley angle.
Valley cuts create more waste, and small mistakes can make an entire panel unusable.
Dormers and Roof Penetrations
Dormers, chimneys, skylights, plumbing vents, and roof-mounted equipment affect panel layout. Although their openings reduce a small amount of roof area, they rarely reduce the number of panel runs.
In many cases, you still need the full panel because the opening is cut from the middle.
Expert Tip:
Create a panel-by-panel sketch before ordering. Number each panel and record its required length. This is more reliable than ordering solely from total square footage, especially when the roof has porches, valleys, dormers, or different eave lengths.
Other Materials Your Sheet Count Does Not Include
Metal panels are only one part of a complete roofing system. Your estimate may also need:
- Ridge caps
- Eave trim or drip edge
- Rake or gable trim
- Valley flashing
- Sidewall and headwall flashing
- Pipe boots
- Closure strips
- Butyl tape and approved sealant
- Roofing underlayment
- Ventilation components
- Fasteners or concealed clips
- Snow guards where appropriate
- Replacement roof decking
The number of screws or clips should come from the panel manufacturer’s fastening pattern. Fastener spacing may depend on panel type, roof location, wind exposure, framing, and local code requirements.
Manufacturer defects and installation workmanship may also be covered by different warranties. The National Roofing Contractors Association’s homeowner resources explain that roofing projects may include both manufacturer material coverage and a separate contractor workmanship warranty. Review both before accepting a quote.
Cost, Quality, and Ordering Considerations
Metal roofing may be priced per square foot, per linear foot, per panel, or as a complete package. Confirm exactly what the quoted price includes.
A lower panel price may not include:
- Delivery
- Custom cutting
- Trim fabrication
- Underlayment
- Fasteners
- Flashing
- Sales tax
- Installation labor
- Removal of the old roof
Custom-cut panels can reduce end laps and material waste, but an incorrect measurement may be expensive to replace. Very long panels are also more difficult to transport and handle without bending or scratching them.
Before ordering, verify:
- Panel profile and gauge
- Coverage width
- Panel length
- Roof slope limitations
- Fastener or clip system
- Finish and color
- Warranty requirements
- Delivery and unloading method
- Return policy for custom panels
Safety When Measuring a Roof
Measuring a roof can be more dangerous than it appears. Metal, shingles, dust, moss, moisture, and steep slopes can create serious fall hazards.
OSHA’s residential fall protection resources include guidance for reducing fall risks during roofing and residential construction work. Roofing workers six feet or more above a lower level may require appropriate fall-protection systems under applicable OSHA rules.
Homeowners should avoid climbing onto a roof when it is:
- Wet, icy, dusty, or covered with leaves
- Steeper than they can safely access
- Damaged or structurally weak
- Near overhead electrical lines
- Exposed to strong wind
- Too high for safe ladder positioning
Measurements can often be taken from building plans, attic dimensions, previous inspection reports, drone measurements, or professional roof-measuring services.
Do not risk a fall to save the cost of a professional measurement.
When to Call a Roofing Professional
A homeowner may be able to estimate materials for a simple shed, detached garage, or small rectangular gable roof. Professional help is the better choice when the roof includes:
- Multiple valleys or hips
- Dormers and skylights
- Chimneys or large penetrations
- Curved or irregular sections
- Very steep slopes
- Long custom-cut panels
- Structural damage or rotten decking
- A complete tear-off and replacement
- Standing seam roofing requiring specialized tools
- Local engineering or wind-uplift requirements
A metal roofing contractor can prepare a detailed material takeoff showing panel sizes, trim quantities, flashing, fasteners, underlayment, and waste.
Ask the contractor to explain how the measurements were calculated. A trustworthy proposal should provide more detail than one total square-foot figure.
Common Mistakes Homeowners Should Avoid
- Using the overall panel width: Always calculate with the manufacturer’s stated coverage width.
- Measuring only the house footprint: Roof slope and overhangs make the roof surface larger.
- Confusing eave width with slope length: Eave width controls panel quantity; slope length controls panel length.
- Rounding down: Any partial calculation requires another full panel.
- Ignoring small roof sections: Porches, attached garages, and entry roofs need separate calculations.
- Subtracting every skylight or vent: These openings may not reduce the number of panel runs.
- Forgetting valleys and angled cuts: Complex cuts often create unusable offcuts.
- Assuming every panel can be reused: Rib direction and cut angles may prevent reuse.
- Adding waste without a layout: A percentage alone cannot correct an inaccurate panel plan.
- Ordering before checking product specifications: Coverage, minimum slope, fastening, and overlap requirements vary.
- Climbing without proper protection: Roof measurement is not worth risking a serious fall.
- Leaving out trim and flashing: A panel-only estimate is not a complete roofing-material order.
FAQs
How many metal roofing sheets do I need for 1,000 square feet?
The answer depends on panel coverage width, panel length, roof shape, and waste. Dividing 1,000 square feet by one sheet’s effective coverage provides a rough estimate, but a panel-by-panel roof layout is more accurate.
How many 3-foot-wide metal panels do I need?
Divide the roof-plane width in feet by 3 and round up. For example, a 32-foot-wide roof plane requires 10.67 panels, which rounds up to 11 panels. Repeat the calculation for every roof plane.
Should I order 10% extra metal roofing?
A 5%–10% allowance may work for a simple gable roof. Roofs with hips, valleys, dormers, or angled cuts may need 10%–15% or a detailed professional takeoff. Custom panel orders should be reviewed individually.
Can I calculate metal roofing from the size of my house?
House size alone is not enough. You also need roof pitch, overhangs, roof-plane dimensions, panel coverage width, and details such as porches, valleys, dormers, and attached garages.
What length should my metal roofing panels be?
Full-length panels normally run from the eave to the ridge along the roof slope. The order length may also include eave overhang, hemming, or trim allowance. Confirm the final measurement with the manufacturer or installer.
Is a 36-inch metal panel exactly 36 inches wide?
It may be physically wider than 36 inches. The 36-inch measurement usually refers to its effective coverage after the panel is overlapped or connected. Check the product specification before calculating.
Can I install metal roofing sheets myself?
Small, simple, low-slope structures may be manageable for an experienced homeowner with the correct tools and safety equipment. Main-house roofs, standing seam systems, steep slopes, and complex flashing details are generally better handled by trained roofing professionals.
Conclusion
To determine how many sheets of metal roofing you need, calculate each roof plane separately. Divide its eave width by the panel’s actual coverage width, round up, and determine the panel length from the full sloped distance between the eave and ridge.
Do not rely only on square footage. Roof pitch, valleys, hips, dormers, penetrations, overlaps, and trim details can significantly affect the final order.
Create a panel-by-panel sketch, confirm the manufacturer’s specifications, and include a sensible allowance for cuts or damage. Before purchasing custom panels, ask an experienced metal roofing supplier or contractor to review your measurements. A careful estimate can prevent wasted material, unexpected costs, and installation delays
