What Gauge Is Metal Roofing? A Homeowner’s Guide to Choosing the Right Thickness
When comparing metal roof estimates, you may see terms such as 29-gauge, 26-gauge, or 24-gauge steel. These numbers describe the approximate thickness of the metal panel, but the system can seem backward: the lower the gauge number, the thicker the metal.
So, what gauge is metal roofing for a typical home? Most residential steel roofing is available in 29-, 26-, and 24-gauge panels. The right choice depends on the panel profile, roof design, local weather, structural support, manufacturer specifications, and budget.
This guide explains how metal roofing gauge works, which thickness is commonly used on homes, and when paying for heavier metal may be worthwhile.
Quick Answer
Most residential metal roofing is 29, 26, or 24 gauge. A 29-gauge panel is thinner and economical, while 26 gauge provides greater strength for many homes. Heavy-duty 24-gauge metal is often used for premium standing seam roofs or demanding weather conditions. Always follow the roofing manufacturer’s engineering requirements.
What Does Metal Roofing Gauge Mean?
Gauge is a traditional measurement used to describe the thickness of sheet metal. For steel roofing, a smaller gauge number generally means a thicker and stronger panel.
For example:
- 29 gauge is thinner than 26 gauge
- 26 gauge is thinner than 24 gauge
- 24 gauge is thinner than 22 gauge
This numbering system often confuses homeowners because it works in the opposite direction from ordinary measurements.
Gauge should not be treated as an exact universal thickness. The actual thickness can vary slightly according to the type of metal, coating, manufacturing tolerances, and whether the stated measurement is nominal or actual.
A contractor should therefore provide more than a gauge number. Ask for the panel’s:
- Base-metal thickness
- Minimum thickness
- Steel grade
- Protective coating
- Paint system
- Panel profile
- Product approval or testing information
These details give you a clearer picture of the roof’s quality.
Common Metal Roofing Gauges
The following table provides a practical comparison of gauges commonly found in residential and light-commercial roofing systems.
| Metal gauge | Relative thickness | Common applications | Main advantage | Possible limitation |
|---|---|---|---|---|
| 29 gauge | Light | Agricultural buildings, sheds, some residential exposed-fastener roofs | Lower material cost | Easier to dent or deform |
| 26 gauge | Medium | Residential roofs, exposed-fastener panels, some standing seam systems | Good balance of strength and cost | More expensive than 29 gauge |
| 24 gauge | Heavy | Premium standing seam roofs, high-wind areas, demanding climates | Greater strength and rigidity | Higher material and labor cost |
| 22 gauge | Very heavy | Specialized architectural and commercial projects | High structural strength | Usually unnecessary for standard homes |
These are general uses, not universal rules. A properly engineered 29-gauge panel can outperform a poorly designed or incorrectly installed thicker panel.
For example, one commonly manufactured exposed-fastener panel is offered in 29-, 26-, 24-, and 22-gauge versions, while its standard configuration is 26 gauge. You can see this range in the MBCI PBR metal panel specifications. (MBCI)

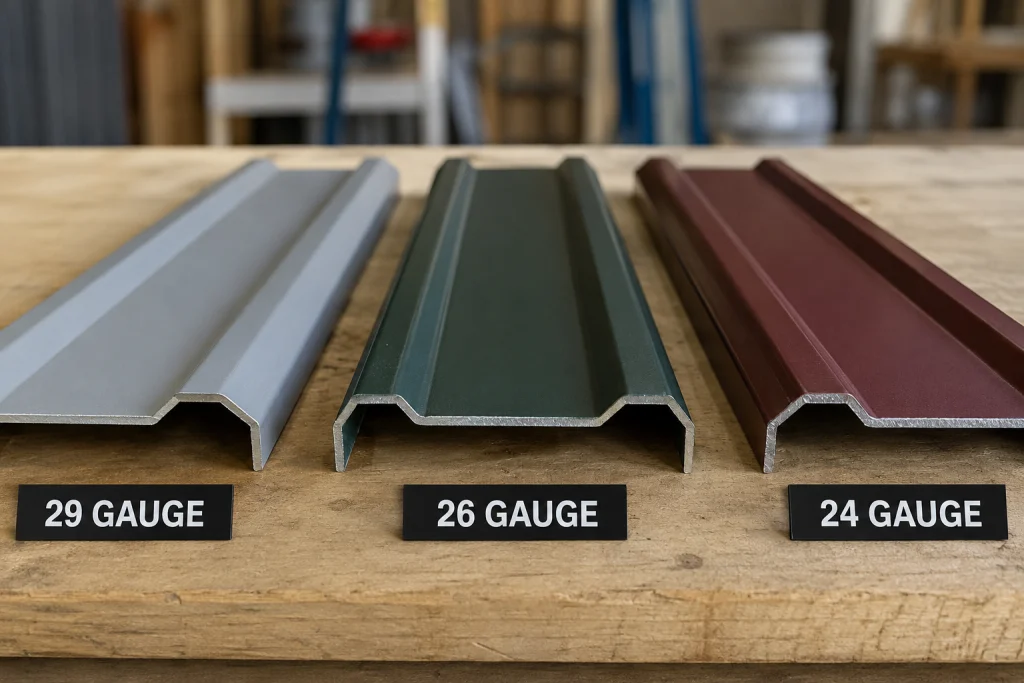

How Thick Is Each Metal Roofing Gauge?
Approximate thicknesses for uncoated steel are often described as follows:
| Steel gauge | Approximate thickness in inches | Approximate thickness in millimeters |
|---|---|---|
| 29 gauge | 0.014 inches | 0.36 mm |
| 26 gauge | 0.018 inches | 0.46 mm |
| 24 gauge | 0.024 inches | 0.61 mm |
| 22 gauge | 0.030 inches | 0.76 mm |
These figures are useful for basic comparison, but they should not be used as final product specifications.
The measured thickness of a finished panel may include metallic coatings, primer, and paint. Manufacturers may also list nominal thickness instead of minimum guaranteed thickness.
Ask the contractor to identify the actual product and provide its technical data sheet. That is more reliable than comparing estimates using gauge alone.
Is 29-Gauge Metal Roofing Good for a House?
A 29-gauge roof can be appropriate for some homes, especially when the panel has adequate structural support and is approved for the building’s wind and snow conditions.
Its advantages include:
- Lower material cost
- Easier handling during installation
- Wide availability
- Acceptable performance in suitable applications
However, thinner metal is generally more vulnerable to:
- Dents from large hail or falling branches
- Bending during handling
- Visible waviness
- Damage caused by walking incorrectly
- Deformation when fasteners are overtightened
The roof deck and support spacing matter greatly. A 29-gauge panel installed over a solid roof deck may behave differently from the same panel spanning widely spaced purlins.
Do not reject 29 gauge automatically. Instead, verify that the complete roofing assembly is tested and approved for your home.
Is 26-Gauge Metal Roofing Better?
For many residential projects, 26 gauge offers a practical middle ground between affordability and strength.
It is thicker and more rigid than 29 gauge, which can make it less likely to bend during handling or show minor surface distortion. It is commonly available in exposed-fastener profiles and certain standing seam systems.
A homeowner may prefer 26 gauge when:
- The home is exposed to strong winds
- Tree branches may occasionally strike the roof
- The panels must span between structural supports
- Greater resistance to installation damage is desired
- The cost increase over 29 gauge is reasonable
- The manufacturer recommends it for the selected profile
However, choosing 26 gauge does not automatically guarantee a longer-lasting roof. Fastener placement, flashing, ventilation, underlayment, panel coating, and installer skill remain essential.
When Is 24-Gauge Metal Roofing Worth It?
A 24-gauge steel roof is often associated with premium standing seam systems. Its additional thickness provides greater rigidity and can improve resistance to deformation.
It may be worth considering for:
- High-end standing seam roofing
- High-wind or hurricane-prone locations
- Roofs with demanding panel spans
- Areas that experience severe weather
- Complex architectural roof designs
- Properties where long-term appearance is especially important
Thicker panels may also reduce the likelihood of oil canning, but they cannot eliminate it completely.
Oil canning is visible waviness in flat areas of metal panels. It is usually cosmetic and can result from thermal movement, manufacturing stresses, handling, installation methods, or an uneven roof deck.
A 24-gauge roof costs more and can be harder to form or cut. It should be installed by a contractor familiar with the specific standing seam system.
Does a Thicker Gauge Make a Metal Roof Last Longer?
Not necessarily.
A thicker panel may resist impact and deformation better, but metal roof life depends on the entire system. Important factors include:
- Metal type and grade
- Galvanized or Galvalume protective coating
- Paint quality
- Panel design
- Fastener quality
- Flashing details
- Roof slope
- Attic ventilation
- Moisture control
- Installation workmanship
- Local environment
- Maintenance
A correctly installed 29-gauge roof with a durable coating may outlast a poorly installed 24-gauge roof that develops leaks around penetrations or flashing.
Gauge measures thickness—not total roofing quality.
Gauge and Panel Type Must Be Considered Together
The same gauge can perform differently in different panel profiles.
Exposed-Fastener Panels
Exposed-fastener panels are secured with screws driven through the metal. The screw heads and sealing washers remain visible.
These systems are commonly available in 29 and 26 gauge. They can be cost-effective but require careful screw installation and periodic inspection.
Potential maintenance points include:
- Loose screws
- Overtightened washers
- Cracked rubber seals
- Backed-out fasteners
- Rust around damaged coatings
- Failed sealant at flashing
Standing Seam Panels
Standing seam roofing uses raised seams and usually conceals the main attachment clips beneath the panels.
These systems are often produced in 26 or 24 gauge, although availability varies by manufacturer. Standing seam roofs allow controlled thermal movement and provide a clean appearance.
They generally cost more because they require specialized materials, forming equipment, detailing, and installation experience.
Metal Shingles and Tiles
Stamped metal shingles may be described by gauge or by their actual thickness. Their shape, interlocking design, fastening system, and coating may be more important than gauge alone.
When comparing these products, request the complete installation specification and warranty rather than relying on one thickness number.
Factors That Determine the Best Gauge
Local Wind Conditions
Homes in coastal, open, or storm-prone areas may need panels with higher tested wind resistance.
Gauge influences strength, but the roof’s wind rating also depends on:
- Fastener type
- Fastener spacing
- Clip design
- Panel width
- Seam design
- Roof-edge details
- Deck attachment
- Structural framing
Ask for a system that meets the local building code and has appropriate product approvals.
Hail and Impact Exposure
Thicker steel is generally harder to deform, but no ordinary metal roof is completely dent-proof.
Hail performance also depends on metal hardness, panel shape, support beneath the panel, and hailstone size. Cosmetic dents may not cause leakage, but they can affect appearance.
Homeowners in hail-prone areas should ask their insurer whether cosmetic damage exclusions apply to metal roofing.
Snow Loads
Heavy snow can place substantial pressure on a roof. Panel gauge, support spacing, framing capacity, and roof geometry must work together.
Do not select a gauge based only on snowfall averages. A contractor or engineer should verify the design loads required by local code.
Roof Deck and Support Spacing
A panel installed over continuous plywood or oriented strand board receives more support than a structural panel spanning between purlins.
Wider support spacing may require:
- A thicker panel
- A deeper rib profile
- Stronger steel
- More restrictive engineering specifications
The panel manufacturer’s span tables should guide the decision.
Budget
A thicker gauge usually costs more because it contains more metal and can require heavier handling or specialized fabrication.
However, the total price difference may be smaller than expected when labor, underlayment, flashing, trim, tear-off, and disposal are included.
Compare complete roofing systems—not only the panel price.
Does Gauge Affect Energy Efficiency?
Gauge has little direct effect on household energy performance. Roof color, surface reflectance, insulation, ventilation, air sealing, and roof assembly design usually matter more.
A reflective metal roof can reduce solar heat absorption in warm climates. According to the U.S. Department of Energy’s cool-roof guidance, cool roofing generally provides the greatest cooling benefit in hot climates, while the results may differ in colder regions. (The Department of Energy’s Energy.gov)
Do not pay extra for thicker metal solely to reduce cooling bills. Focus on a tested reflective finish and a properly designed attic or roof assembly.
Expert Tip: Compare written product specifications, not verbal descriptions. Two contractors may both quote a “26-gauge metal roof” while offering very different coatings, fasteners, warranties, flashing systems, and installation standards.
Questions to Ask a Metal Roofing Contractor
Before accepting an estimate, ask:
- What is the panel manufacturer and exact product name?
- Is the stated gauge nominal or minimum thickness?
- What metal coating and paint system are included?
- Is the panel approved for local wind and snow loads?
- Will it be installed over solid decking or spaced supports?
- What underlayment will be used?
- How will valleys, chimneys, walls, and roof penetrations be flashed?
- Is the workmanship warranty separate from the product warranty?
- Does the warranty exclude coastal exposure, ponding water, or cosmetic damage?
- Who is responsible for correcting installation defects?
A professional contractor should be able to provide technical documents and explain why a particular gauge is suitable for your house.
Common Mistakes Homeowners Should Avoid
- Assuming a lower gauge number means thinner metal. It means the opposite for steel roofing.
- Choosing the thickest panel automatically. A heavier panel may add cost without providing a meaningful benefit for every home.
- Comparing gauge alone. Coating, panel profile, fastening, flashing, and installation quality are equally important.
- Ignoring minimum thickness. Nominal gauge descriptions may not tell you the guaranteed minimum metal thickness.
- Buying agricultural panels for an unsuitable residential application. Confirm that the product is approved for the roof design and local code.
- Assuming thicker metal cannot dent. Severe hail and falling objects can damage nearly any roofing panel.
- Overlooking the roof deck. An uneven deck can affect panel appearance and installation.
- Accepting vague estimates. The contract should identify the manufacturer, profile, gauge, finish, underlayment, trim, and fastening system.
- Walking on the roof without instructions. Incorrect foot placement can dent panels and create a serious fall hazard.
- Allowing inexperienced installation. Metal roof flashing and thermal movement require specialized knowledge.
Can Homeowners Measure Metal Roofing Gauge?
A precision sheet-metal micrometer can measure panel thickness, but interpreting the result is not always simple. Paint, metallic coatings, and manufacturing tolerances can affect the reading.
A basic measuring tool may not provide enough accuracy to distinguish between some gauges.
For an existing roof, a contractor may measure an accessible panel edge, inspect product markings, or identify the panel through invoices and manufacturer records.
Never climb onto a roof simply to measure the metal. Metal surfaces can be slippery, especially when wet, dusty, frosted, or covered with pollen. OSHA’s residential construction fall-protection resources emphasize the serious fall hazards associated with roofing work. (OSHA)
When to Call a Roofing Professional
Call a qualified metal roofing contractor when:
- You do not know the gauge or panel type on an existing roof
- Panels appear loose, bent, lifted, or badly dented
- Fasteners are backing out
- Water stains appear on ceilings or attic framing
- Rust is spreading around scratches or cut edges
- Flashing has separated around a chimney or wall
- You are replacing asphalt shingles with metal
- Your home is in a high-wind, heavy-snow, coastal, or wildfire-prone area
- Structural supports or roof decking may be damaged
- You need to compare engineered panel systems
- Roof work would require climbing or walking on metal panels
Roofing work can involve falls, sharp panel edges, power tools, and large sheets that become difficult to control in wind. OSHA regulations require fall protection for covered roofing work where workers face qualifying fall exposures, including unprotected roof edges. (OSHA)
A professional inspection is particularly important before replacement. The contractor should evaluate the deck, framing, ventilation, flashing, penetrations, drainage, and code requirements—not just the visible panels.
FAQs
What gauge is standard metal roofing?
There is no single standard gauge for every metal roof. Residential steel roofing is commonly available in 29, 26, and 24 gauge. The correct choice depends on the panel profile, structural support, local weather, and manufacturer specifications.
Is 26-gauge metal roofing better than 29 gauge?
A 26-gauge panel is thicker and generally more rigid than a 29-gauge panel. It may provide better resistance to bending and handling damage, but a properly engineered 29-gauge system can still be suitable for many homes.
Is 24-gauge metal roofing good for residential use?
Yes. Twenty-four-gauge steel is often used for premium residential standing seam roofs. It can be particularly useful for demanding weather conditions or projects that require greater panel rigidity.
What gauge metal roof is best for hail?
Thicker 24- or 26-gauge steel may resist deformation better than thinner steel, but gauge alone does not determine hail performance. Steel hardness, panel profile, structural support, and the roof system’s impact rating also matter.
Does thicker metal roofing make less noise?
Not by itself. Most roof noise is controlled by the complete assembly, including solid decking, underlayment, attic space, insulation, and interior ceilings. A properly constructed metal roof should not sound like an open metal shed.
Can you walk on 29-gauge metal roofing?
Some 29-gauge roofs can support limited foot traffic when walked according to the manufacturer’s instructions. However, incorrect foot placement can dent panels, damage seams, or cause a fall. Homeowners should avoid walking on a metal roof.
Does metal roofing gauge affect the warranty?
It may. Manufacturers can offer different warranty terms based on the product, coating, paint system, application, environment, and installation method. Read both the material warranty and the contractor’s workmanship warranty carefully.
Conclusion
So, what gauge is metal roofing? Most residential steel roofs use 29-, 26-, or 24-gauge panels, with lower numbers indicating thicker metal. Twenty-nine gauge can be economical and effective in suitable systems, 26 gauge offers a strong balance for many homes, and 24 gauge is common in heavier-duty or premium applications.
Gauge should never be your only buying criterion. Review the panel profile, minimum thickness, coating, paint finish, engineering approvals, roof deck, fasteners, flashing details, and installer experience.
Before signing a contract, request the exact product specifications and ask the contractor to explain why the recommended gauge is appropriate for your climate and roof design. A well-designed and properly installed system is more valuable than choosing thicker metal without considering the rest of the roof.
