How to Screw Down Metal Roofing Correctly: A Homeowner’s Guide
A screw-down metal roof can look simple: line up the panels, add screws, and move to the next row. In practice, small fastenin(McElroy Metal Blog)e panels, and early washer failure. Learning how to screw down metal roofing correctly means choosing the right fastener, following the panel manufacturer’s pattern, and driving every screw straight with the proper pressure.
This guide explains where screws go, how tight they should be, what tools are needed, and when professional installation is the safer choice.
Quick Answer
To screw down metal roofing, use manufacturer-approved screws with bonded sealing washers, mark the framing or deck below, and drive each screw straight—not at an angle. Tighten only until the washer is evenly seated. Follow the exact fastener location and spacing in the panel manual because screw patterns vary by profile and wind requirements.
What Is a Screw-Down Metal Roof?
A screw-down roof is also called an exposed-fastener metal roof. The screw passes through the panel face and into the roof deck, wood purlin, or metal framing. The screw head and sealing washer remain visible.
Standing-seam roofing usually hides fasteners beneath seams or clips. Exposed-fastener panels can install faster, but their screws and washers become part of the weather barrier.
The Metal Construction Association’s fastener guidance explains that fasteners must match the panel and supporting structure to create a strong, weather-tight connection. A general-purpose screw is not automatically suitable for roofing. (Metal Construction Association)e You Start: Confirm the Roof System
Do not copy a screw pattern from a video or nearby building. Metal panel profiles are tested with specific fastener locations, spacing, edge details, and overlaps.
Find the installation manual for the exact panel. It should identify:
- Whether screws go through the flat, shoulder, or high rib
- Fastener size, point type, coating, and washer
- Spacing at eaves, ridges, laps, corners, and field areas
- Panel overlap and stitch-screw locations
- Minimum roof slope
- Decking or purlin requirements
- Special fastening in high-wind zones
Manufacturers state that no single fastener pattern works for every exposed-fastener panel. Some instructions even specify the order in which screws are installed across a panel. (McElroy Metal Blog)ant:** Changing the tested screw number, position, or spacing can reduce wind resistance even when the finished roof looks acceptable.
Safety Comes Before Fastening
Metal roofing becomes slick from dew, rain, frost, dust, and loose shavings. Long panels can also act like sails in wind. Never work on a wet roof or in gusty conditions.
For roofing employees, OSHA generally requires fall protection when residential construction work is performed 6 feet or more above a lower level. Homeowners should treat the OSHA residential fall-protection guidance as a practical safety baseline. (OSHA)k may require a properly placed ladder, approved anchors and lifelines, a harness, soft-soled footwear, gloves, eye protection, and a second person. Do not attempt a full metal-roof installation from a ladder alone. Hire a professional if you cannot safely install and use fall-arrest equipment.
Choose the Correct Metal-Roofing Screws
The right screw depends on the panel and the material below it.
Wood Decking or Purlins
Use a roofing screw designed for wood. Its length and thread must provide the embedment required by the panel manufacturer.
Steel Framing
Use the specified drill point and thread for the steel thickness. A wood screw may strip the opening or fail to hold correctly in metal framing.
Look for:
- Bonded sealing washer
- Corrosion-resistant finish
- Approved head style
- Correct drill point and threads
- Metal compatibility
- Manufacturer-approved length
Long-life capped fasteners can weather better than low-cost unprotected screws. Coastal air, treated lumber, and aluminum panels may also require special fastener materials. (McElroy Metal Blog) Should Screws Go on Metal Roofing?

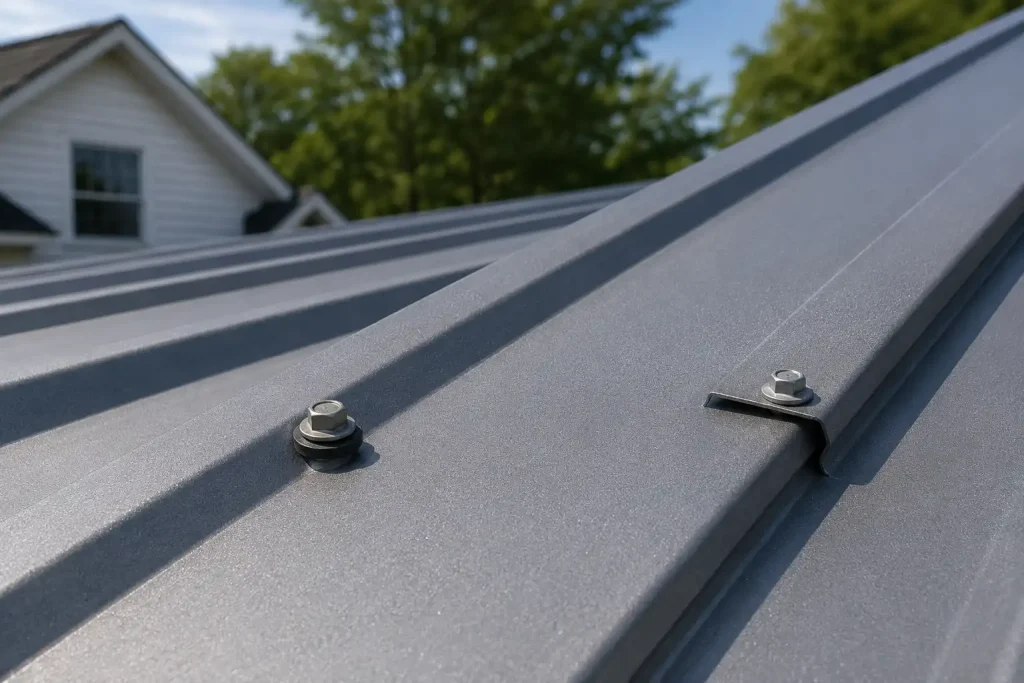

Place screws exactly where the panel manufacturer specifies.
Many residential panels attach through a flat area beside a rib because the panel sits firmly against the support there. Other profiles may require another location. Side-lap stitch screws may go through a raised overlap.
Do not assume that “high rib” or “low flat” is always correct. The wrong location can distort the panel, weaken the attachment, or stop the washer from sealing evenly.
How to Screw Down Metal Roofing Step by Step
1. Inspect the Deck or Framing
The structure must be sound, dry, and suitable for the panel system. Replace rotten sheathing, damaged purlins, and badly corroded framing. A screw cannot create a durable connection in weak material.
Confirm that underlayment and required flashing are installed in the correct sequence. Fasteners cannot compensate for missing flashing.
2. Plan the Panel Layout
Measure the roof and verify that the eave and rake lines are square. A small error in the first panel grows across the roof.
Confirm panel overhang and overlap direction before fastening. Use the manufacturer’s layout rather than adjusting later panels to hide a crooked start.
3. Mark the Supports
Use chalk lines to mark purlins, framing, or other fastening lines beneath the panels. This reduces missed supports.
Predrill only when permitted. Remove drill shavings immediately because they can rust, stain, or scratch the coating.
4. Position the First Panel
Place the first panel with the required overhang. Check it against the eave, rake, and reference line before fully fastening it.
Install enough screws to hold it securely, then measure again. Do not lock in a crooked panel.
5. Set the Driver
Use a drill or screw gun with an adjustable clutch and the correct magnetic nut-setter. Start with low torque and moderate speed.
Hold the driver 90 degrees to the roof surface. An angled screw creates uneven washer pressure and a possible water path.
6. Seat the Washer Correctly
Stop when the sealing washer contacts the panel evenly and is compressed only enough to form a seal.
- Too loose: The washer does not fully contact the panel.
- Too tight: The washer bulges, splits, or the panel dimples.
- Angled: One side seals while the other remains open.
- Correct: The washer is centered and evenly seated.
Manufacturers warn that underdriven screws allow water entry, while overdriven screws damage washers and can dimple panels. Screws must enter the substrate vertically. (blog.mcelroymetal.com)
7. Follow the Fastening Sequence
Work in the sequence shown in the manual. It may require starting at a certain rib or fastening the center before the edges.
Keep checking panel alignment and overlap. Do not rely only on how the seam looks.
8. Install Laps, Trim, and Flashing
Structural screws and stitch screws may have different lengths and purposes. A stitch screw joins sheet metal at a side lap but may not attach the panel to the roof structure.
Install closure strips, sealant tape, ridge caps, rake trim, and pipe flashing according to their details. Surface caulk is not a substitute for correctly lapped and fastened flashing.
9. Clean and Inspect
Remove shavings, loose screws, and debris. Check every fastening line.
Correct loose, overdriven, missed, or angled screws immediately. If a hole is enlarged, use the manufacturer’s approved repair method rather than driving the same screw harder.
Screw Installation Quality Checklist
| Screw condition | What it looks like | Likely result | Corrective action |
|---|---|---|---|
| Correct | Washer centered and evenly seated | Strong attachment and seal | Leave in place |
| Underdriven | Washer loose or movable | Water entry | Tighten carefully |
| Overdriven | Washer bulges; panel dimples | Washer damage and leakage | Repair as manufacturer directs |
| Angled | Washer contacts one side only | Uneven seal and enlarged hole | Remove and use an approved repair |
| Missed support | Screw spins or will not tighten | Weak attachment | Correct using an approved detail |
| Wrong fastener | Rusting head or no bonded washer | Corrosion or leakage | Replace with the specified fastener |
Expert Tip
Expert Tip: Practice on a scrap panel over the same wood or steel support. Adjust the clutch until the washer seats evenly without bulging. This simple test reduces damage to finished panels.
Common Mistakes Homeowners Should Avoid
- Using deck or drywall screws: They are not weather-sealed roofing fasteners.
- Guessing screw spacing: Corners and edges may need closer fastening for wind resistance.
- Driving at full speed: Excessive speed makes depth harder to control and can strip the support.
- Overtightening “for safety”: More pressure does not create a better seal.
- Missing purlins or framing: A screw through thin sheet metal alone provides little structural holding power.
- Mixing incompatible metals: The wrong coating or material can promote corrosion.
- Leaving metal shavings: They can rust and stain the roof.
- Walking on unsupported areas: Panels can bend or become unsafe underfoot.
- Using caulk to hide errors: Sealant cannot replace correct fastening or flashing.
- Ignoring first-panel alignment: A crooked start affects every later panel.
Durability, Maintenance, and Cost Considerations
Exposed screws and washers face sun, rain, temperature changes, and roof movement. Over time, fasteners can loosen, washers can deteriorate, and holes can enlarge.
Check the roof from the ground after severe storms. Arrange a professional inspection if you notice lifted panels, backed-out screws, cracked washers, rust streaks, or ceiling stains.
The cheapest screw is rarely the lowest-cost option over the roof’s life. Budget for approved fasteners, underlayment, flashing, closures, sealants, safe-access equipment, waste, and possible replacement panels. A contractor quote should identify the panel, substrate, fastener specification, fastening pattern, flashing scope, warranty, and cleanup.
When to Call a Roofing Professional
Hire a qualified metal-roofing contractor when:
- The roof is steep, high, wet, or difficult to access
- The home has valleys, dormers, skylights, chimneys, or several penetrations
- Decking is soft, rotten, sagging, or structurally uncertain
- The property is in a high-wind, heavy-snow, wildfire, or coastal area
- Panels are long and difficult to control
- Warranty coverage requires approved installation
- Existing screw holes are enlarged or leaking
- You cannot identify the panel or approved screw pattern
- You lack fall-protection equipment and training
Ask the contractor for the installation details. The manufacturer’s installation and product manuals are more reliable than a generic fastening chart because they address the exact panel system.
FAQs
Should metal-roof screws go in the flat or on the rib?
It depends on the panel profile. Many systems fasten through a flat area, while others specify another location. Follow the manufacturer’s drawing.
How tight should metal-roof screws be?
Tighten until the bonded washer is evenly seated. Do not crush it, make it bulge, or dimple the panel.
How far apart should screws be on metal roofing?
There is no universal spacing. It depends on the panel, support spacing, roof zone, wind design, and substrate. Use the tested fastening schedule.
Can I Use Regular Self-Tapping Screws?
Only when they are approved for that panel and substrate. Roofing fasteners need the correct point, threads, corrosion protection, head, and sealing washer.
What Happens If I Overtighten a Screw?
Overtightening can deform the washer, dimple the panel, and create a place for water to collect. The connection may leak later.
Can Loose Screws Simply Be Tightened?
Sometimes. If the hole is stripped or enlarged, tightening may not restore holding strength or a weather-tight seal. Use an approved repair.
Is Screw-Down Metal Roofing a Good DIY Project?
A small, low, simple structure may be manageable for an experienced homeowner with the correct manual and safety equipment. A full house roof is usually better handled by a trained crew.
Conclusion
Knowing how to screw down metal roofing is not about using more screws. It is about using the specified fastener, placing it in the tested location, hitting solid support, and seating the washer without crushing it.
Start with the manual for the exact panel. Keep the first sheet square, inspect each fastening row, and never compromise on fall protection. When the roof is steep, complex, damaged, or beyond your experience, request a detailed quote from a qualified metal-roofing contractor and compare the proposed work with the manufacturer’s requirements.
